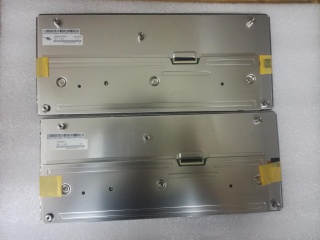

| PartNumber | HSD123JPW1-A20 |
| Marca | HannStar |
| mărimea | 12.3 |
| Aplicație | Outdoor High Brightn |
| Rezoluţie | 1920×720 |
| Compoziţie | a-Si TFT-LCD, LCM |
| Luminozitate | |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | 11S4P |
| Interfață | LVDS |
| marca panoului | HannStar |
| model de panou | HSD123JPW1-A20 |
| dimensiunea panoului | 12.3" |
| tip panou | a-Si TFT-LCD, LCM |
| rezoluţie | 1920(RGB)×720, 167PPI |
| format de pixeli | RGB Vertical Stripe |
| zona de afisare | 292.032(W)×109.512(H) mm |
| deschiderea ramei | 294.8(W)×112.1(H) mm |
| dimensiunea conturului | 308.1(W)×130(H) ×16.6(D) mm |
| suprafaţă | Antiglare |
| luminozitatea | 850 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) (TM) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10) |
| modul de afișare | IPS Pro, Normally Black, Transmissive |
| cea mai bună vedere pe | Symmetry |
| timp de raspuns | 18/17 (Typ.)(Tr/Td) |
| culorile afișajului | 16.7M 70% NTSC |
| tip lampa | 11S4P WLED , 30K hours , Without Driver |
| frecvență | 60Hz |
| touch screen | Without |
| greutatea panoului | 520g (Typ.) |
| aplicarea | Outdoor High Brightness Automotive Display |
| interfață de semnal | LVDS (2 ch, 8-bit) , 50 pins Connector |
| tensiune de intrare | 3.3V (Typ.) |
| mediu inconjurator | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| C123HAN01.1 | AUO | 12.3 | 1920×720 |
| LA123WF1-SL01 | LG Display | 12.3 | 1920×720 |
| LAM1233548D | JDI | 12.3 | 1920×720 |
| LD123UX1-SMA1 | LG Display | 12.3 | 1600×1200 |
| LQ123K1LG03 | SHARP | 12.3 | 1280×480 |
| LQ123K3LG01 | SHARP | 12.3 | 1280×480 |
| TJ123NP01AA | TPO | 12.3 | 1280×480 |
| TJ123NP01BA | Innolux | 12.3 | 1280×480 |
| TJ123NP01CA | Innolux | 12.3 | 1280×480 |
| TX31D200VM0BAA | KOE | 12.3 | 1280×480 |
