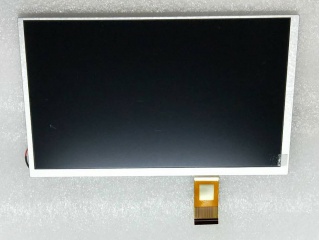

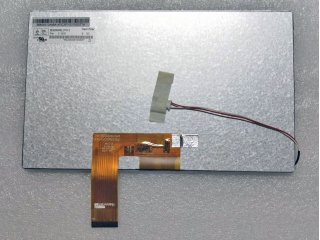

| PartNumber | HSD090LFW1-B00 |
| Marca | HannStar |
| mărimea | 9.0 |
| Aplicație | Automotive Display |
| Rezoluţie | 1024×600 |
| Compoziţie | a-Si TFT-LCD, LCM |
| Luminozitate | |
| CR | 800:1 |
| Culori | 262K/16.2M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca | HannStar |
| model | HSD090LFW1-B00 |
| dimensiunea diagonalei | 9.0 inch |
| tip | a-Si TFT-LCD, LCM |
| format de pixeli | 1024(RGB)×600 [WSVGA] 132PPI |
| configurație | RGB Vertical Stripe |
| Zonă activă | 196.608(H)×114.15(V) mm |
| contur dim. | 211.1(H)×126.5(V) ×6(D) mm |
| zona rama | 200.01(H)×117.55(V) mm |
| tratament | Glare (Haze 0%) |
| luminanţă | 450 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) (TM) |
| direcția vizualizării | Symmetry |
| timp de raspuns | 17/18 (Typ.)(Tr/Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10) |
| mod de operare | IPS Pro, Normally Black, Transmissive |
| culoare suport | 262K/16.2M 50% NTSC |
| sursă de lumină | WLED , 150K hours , W/O Driver |
| greutate | 230g (Typ.) |
| proiectat pentru | Automotive Display |
| rata de cadre | 60Hz |
| panou tactil | Without |
| tipul de interfață | LVDS (1 ch, 6/8-bit) , 40 pins FPC |
| alimentare electrică | 3.3/12.5/23/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| mediu inconjurator | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²) |
