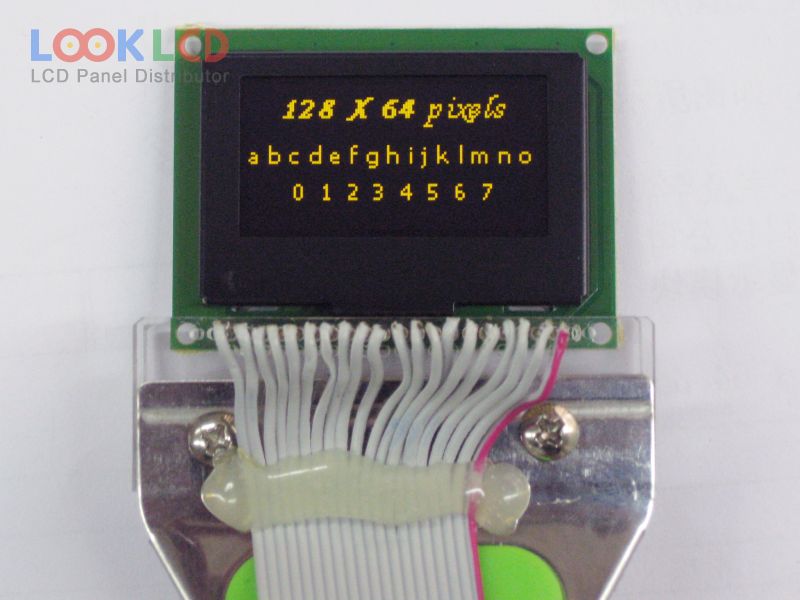

HGS128647-Y-EH-LV

HGS128647-Y-EH-LV
HGS128647-Y-EH-LV thumb
Marca
Other
mărimea
1.54
Aplicație
IA
Rezoluţie
128×64
Compoziţie
OLED
Luminozitate
150
CR
2000:1
Culori
Mono(Yellow)
Iluminare de fundal
self
Interfață
CPU/SPI/I²C
In Stock
13674
Specificații

PartNumber HGS128647-Y-EH-LV
MarcaOther
mărimea1.54
AplicațieIA
Rezoluţie128×64
CompoziţieOLED
Luminozitate150
CR2000:1
CuloriMono(Yellow)
Iluminare de fundalself
InterfațăCPU/SPI/I²C
marca panouluiTSINGTEK
model de panouHGS128647-Y-EH-LV
tip panou PM-OLED , OLED
dimensiunea panoului1.54 inch
rezoluţie128×64
Zonă activă35.056×17.52 mm
contur54×39.5×8.5 mm
suprafaţă
luminozitatea150 cd/m² (Typ.)
Raport de contrast2000 : 1 (Min.)
culorile afișajuluiMono(Yellow)
unghi de vedere80/80/80/80 (Min.)(L/R/U/D)
driver icBuilt-in SSD1305
interfață de semnal8-bit 6800/8080 parallel, 4-wire SPI, I²C, 20 pins
tensiune de intrare3.3V (Typ.)
rohs:
aplicareaIA
