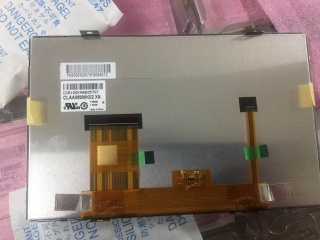

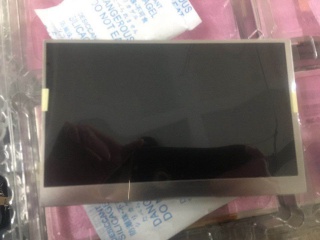

| PartNumber | CLAA080WK02 XN |
| Marca | CPT |
| mărimea | 8.0 |
| Aplicație | Automotive Display |
| Rezoluţie | 1280×720 |
| Compoziţie | a-Si TFT-LCD, LCM |
| Luminozitate | |
| CR | 900:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca | CPT |

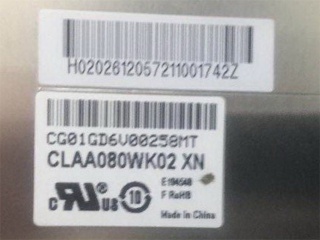

| model | CLAA080WK02 XN |
| dimensiunea diagonalei | 8.0 inch |
| tip | a-Si TFT-LCD, LCM |
| format de pixeli | 1280(RGB)×720 [WXGA] 183PPI |
| configurație | RGB Vertical Stripe |
| Zonă activă | 177.024(H)×99.576(V) mm |
| contur dim. | 186.5(H)×117.22(V) ×13.1(D) mm |
| zona rama | 179.03(H)×101.58(V) mm |
| tratament | Antiglare (Haze 25%) |
| luminanţă | 600 cd/m² (Typ.) |
| Raport de contrast | 900:1 (Typ.) (TM) |
| direcția vizualizării | Symmetry |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10) |
| mod de operare | HFFS, Normally Black, Transmissive |
| culoare suport | 262K/16.7M 70% NTSC |
| sursă de lumină | WLED [5S4P] , 30K hours , W/O Driver |
| greutate | TBD |
| proiectat pentru | Automotive Display |
| rata de cadre | 60Hz |
| panou tactil | Without |
| tipul de interfață | LVDS (1 ch, 6/8-bit) , 60 pins FPC |
| alimentare electrică | 3.3/12.4/22/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| mediu inconjurator | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 2.9G (28.4 m/s²) |
