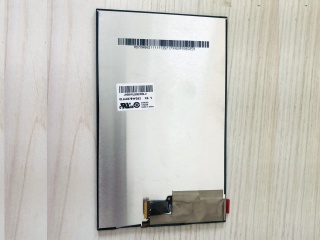

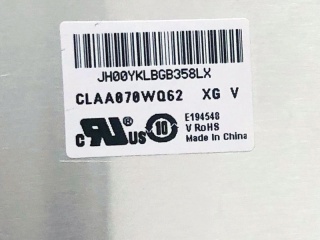

| PartNumber | CLAA070WQ62 XG |
| Marca | CPT |
| mărimea | 7.0 |
| Aplicație | Pad & Tablet |
| Rezoluţie | 800×1280 |
| Compoziţie | a-Si TFT-LCD , LCM |
| Luminozitate | |
| CR | 800:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | MIPI |
| marca | CPT |
| dimensiunea diagonalei | 7.0 inch |
| format de pixeli | 800(RGB)×1280 [WXGA] 215PPI |
| Zonă activă | 94.2(H)×150.72(V) mm |
| zona rama | - |
| luminanţă | 350 cd/m² (Typ.) |
| direcția vizualizării | Symmetry |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10) |
| culoare suport | 16.7M 70% NTSC |
| greutate | - |
| rata de cadre | 60Hz |
| tipul de interfață | MIPI (4 data lanes) , 39 pins FPC |
| alimentare electrică | 1.8/3.3/15/-10V (Typ.)(VDDI/VCI/VGH/VGL) |
| mediu inconjurator | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| model | CLAA070WQ62 XG |
| tip | a-Si TFT-LCD , LCM |
| configurație | RGB Vertical Stripe |
| contur dim. | 99.6(H)×161.62(V) ×4.05(D) mm |
| tratament | Hard coating |
| Raport de contrast | 800:1 (Typ.) (TM) |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| mod de operare | FFS, Normally Black, Transmissive |
| sursă de lumină | WLED [3S6P] , 15K hours , W/O Driver |
| proiectat pentru | Pad & Tablet |
| panou tactil | On-Cell Touch |
