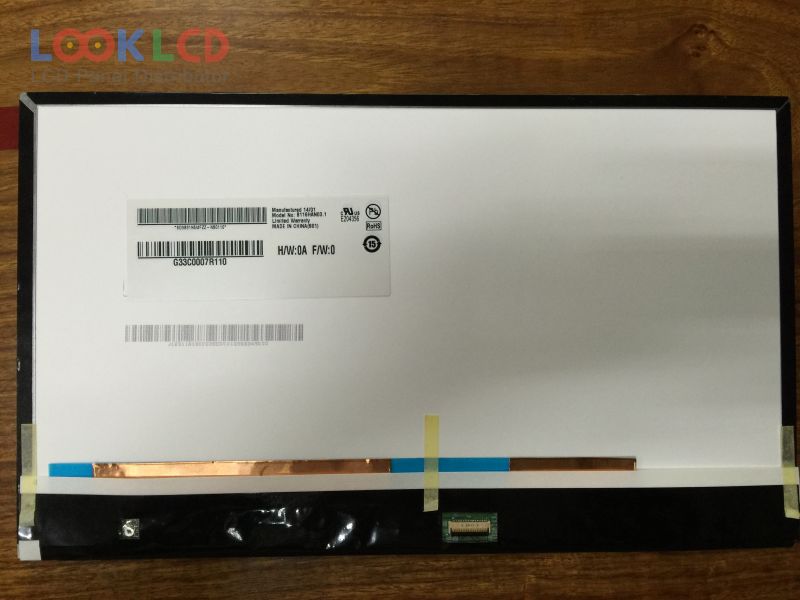

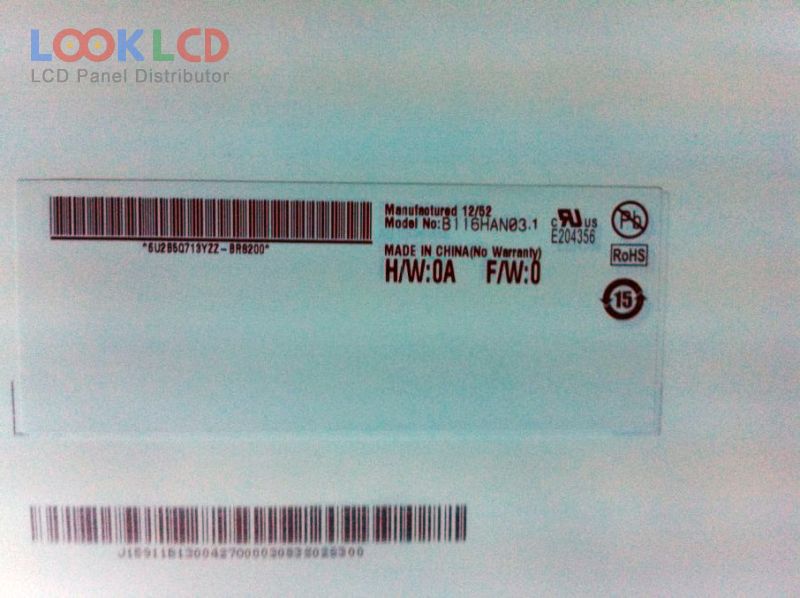

| PartNumber | B116HAN03.1 |
| Marca | AUO |
| mărimea | 11.6 |
| Aplicație | PAD |
| Rezoluţie | 1920×1080 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 800:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | eDP |
| marca panoului | AUO |
| model de panou | B116HAN03.1 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 11.6 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | AHVA, Normally Black, Transmissive |
| Zonă activă | 256.32×144.18 mm |
| contur | 270.37×159.79×4.9 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193152% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | eDP (2 Lanes), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PAD |
