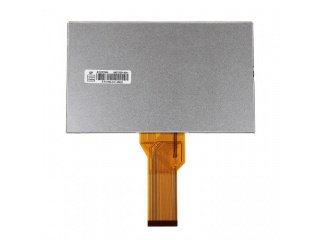

| PartNumber | AT070TN04 |
| Marca | Innolux |
| mărimea | 7.0 |
| Aplicație | Automotive Display |
| Rezoluţie | 480×234 |
| Compoziţie | a-Si TFT-LCD , LCM |
| Luminozitate | |
| CR | 300:1 |
| Culori | Full |
| Iluminare de fundal | CCFL |
| Interfață | TFT |
| marca | Innolux |
| dimensiunea diagonalei | 7.0 inch |
| format de pixeli | 480(RGB)×234 76PPI |
| Zonă activă | 154.08(H)×86.58(V) mm |
| zona rama | - |
| luminanţă | 500 cd/m² (Typ.) |
| direcția vizualizării | 6 o'clock |
| unghi de vedere | 60/60/40/60 (Typ.)(CR≥10) |
| culoare suport | Full color |
| greutate | 160g (Typ.) |
| rata de cadre | 60Hz |
| tipul de interfață | TFT Specific Analog RGB , 26 pins FPC |
| alimentare electrică | 5.0/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| mediu inconjurator | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| model | AT070TN04 |
| tip | a-Si TFT-LCD , LCM |
| configurație | RGB Vertical Stripe |
| contur dim. | 164.9(H)×100(V) ×6(D) mm |
| tratament | Antiglare |
| Raport de contrast | 300:1 (Typ.) (TM) |
| timp de raspuns | 10/20 (Typ.)(Tr/Td) |
| mod de operare | TN, Normally White, Transmissive |
| sursă de lumină | CCFL [1 pcs] , 10K hours , W/O Driver |
| proiectat pentru | Automotive Display |
| panou tactil | Without |
| AT070TN01 | Innolux | 7.0 | 480×234 |
| AT070TN07 V.A | Innolux | 7.0 | 480×234 |
| AT070TN07 V.D | Innolux | 7.0 | 480×234 |
| AT070TN82 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN83 | Innolux | 7.0 | 800×480 |
| AT070TN84 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN90 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.1 TP | Innolux | 7.0 | 800×480 |
| AT070TN92 V.X | Innolux | 7.0 | 800×480 |
| AT070TNA2 | Innolux | 7.0 | 1024×600 |
