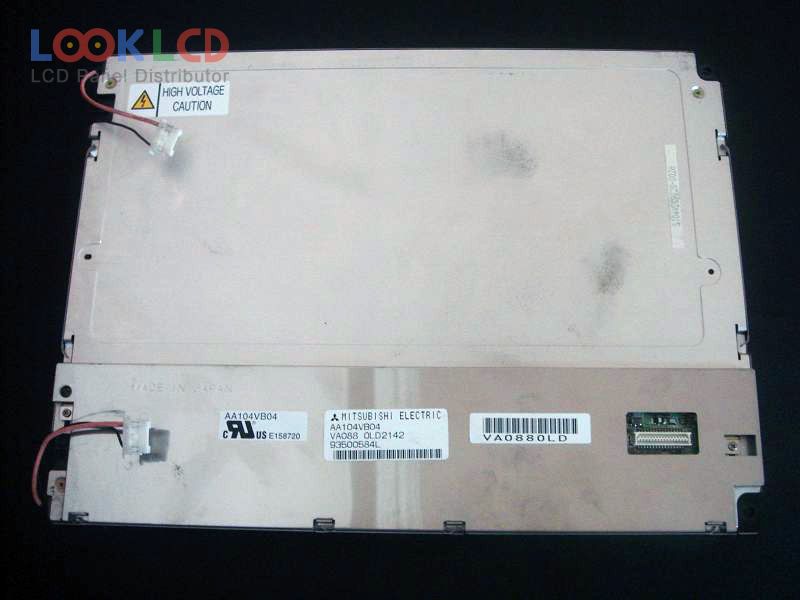

| PartNumber | AA104VB04 |
| Marca | Mitsubishi |
| mărimea | 10.4 |
| Aplicație | IA |
| Rezoluţie | 640×480 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 300:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | TTL |
| marca panoului | Mitsubishi |
| model de panou | AA104VB04 1 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.4 inch |
| rezoluţie | 640(RGB)×480 , VGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 211.2×158.4 mm |
| contur | 243×181.6×12.7 mm |
| suprafaţă | |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 300:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 15/35 (Typ.)(Tr/Td) |
| unghi de vedere | 60/60/55/45 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 2 pcsCCFLWithout Driver |
| interfață de semnal | CMOS (1 ch, 6-bit), 31 pins |
| tensiune de intrare | 5.0V (Typ.)(VCC) |
| aplicarea | IA |
| AA104SG01 | Mitsubishi | 10.4 | 800×600 |
| AA104SH02--T1 | Mitsubishi | 10.4 | 800×600 |
| AA104SL02-DE1 | Mitsubishi | 10.4 | 800×600 |
| AA104VB04 | Mitsubishi | 10.4 | 640×480 |
| AA104VC04 | Mitsubishi | 10.4 | 640×480 |
| AA104VC06 | Mitsubishi | 10.4 | 640×480 |
| AA104VH02 | Mitsubishi | 10.4 | 640×480 |
| AA104XD12 | Mitsubishi | 10.4 | 1024×768 |
| AA104XG12 | Mitsubishi | 10.4 | 1024×768 |
| AA106TA01 | Mitsubishi | 10.6 | 1280×768 |
| CLAA150XP06CW | CPT | 15.0 | 1024×768 |
| EL480.60.43 CC | PLANAR | 8.1 | 480×60 |
| G190SVT01.0 | AUO | 19.0 | 1680×342 |
| KCG047QV1AA-A210 | Kyocera | 4.7 | 320×240 |
| KG057QV1CA-G000 | Kyocera | 5.7 | 320×240 |
| M084GNS1 R1 | IVO | 8.4 | 800×600 |
| NL10276AC20-03 | NLT | 10.4 | 1024×768 |
| NL6448BC20-18D | NLT | 6.5 | 640×480 |
| TX20D28VM2BAB | KOE | 8.0 | 800×480 |
| TX26D17VM2BAA | KOE | 10.4 | 640×480 |
