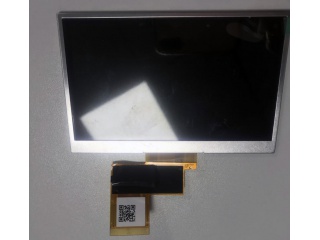

| PartNumber | ZJ043NA-01M |
| Marca | Innolux |
| mărimea | 4.3 |
| Aplicație | Video Door Phone MP3 |
| Rezoluţie | 480×272 |
| Compoziţie | LCM, a-Si TFT-LCD |
| Luminozitate | |
| CR | 500:1 |
| Culori | 16.7M |
| Iluminare de fundal | 8S1P |
| Interfață | |
| producător | Innolux |
| numele modelului | ZJ043NA-01M |
| marimea ecranului | 4.3 inch |
| tipul de ecran | LCM, a-Si TFT-LCD |
| numărul de pixeli | 480(RGB)×272 (WQVGA) 128PPI |
| aranjament | RGB Vertical Stripe |
| zona activa (mm) | 95.04 × 53.856 (H×V) |
| contur (mm) | 105.5 × 67.2 (H×V×D) |
| zona rama (mm) | - |
| tratament | Antiglare |
| luminanţă | 400 cd/m² (Typ.) |
| Raport de contrast | 500 : 1 (Typ.) (TM) |
| unghi de vedere | 70/70/50/70 (Typ.)(CR≥10) |
| raspuns | 10/15 (Typ.)(Tr/Td) ms |
| vedere buna la | - |
| modul de lucru | TN, Normally White, Transmissive |
| adâncimea culorii | 16.7M 50% NTSC |
| lumina de fundal | 8S1P WLED , No Driver |
| masa | 43.3g (Typ.) |
| folosit pentru | Video Door Phone MP3 PMP |
| rată de reîmprospătare | - |
| touch screen | Without |
| Storage Temp.: -30 ~ 80 °C Operating Temp.: -10 ~ 70 °C |
