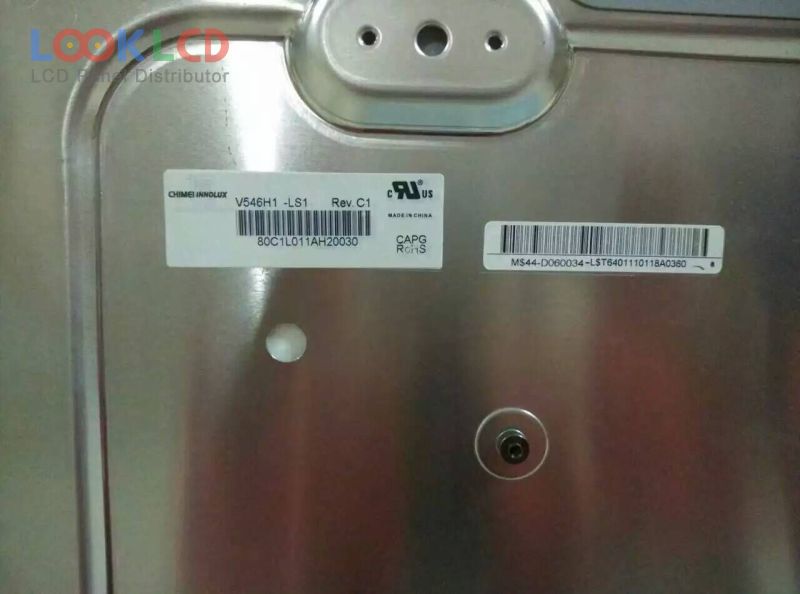

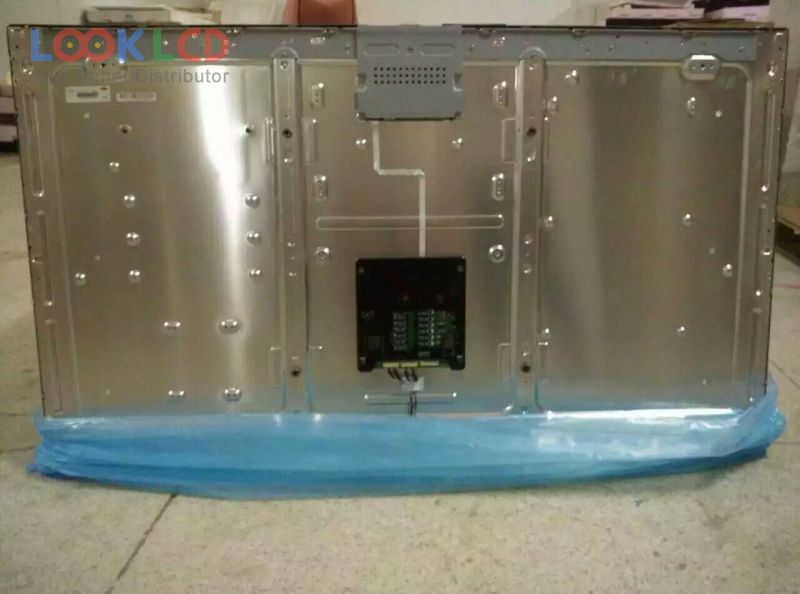

| PartNumber | V546H1-LS1 |
| Marca | Innolux |
| mărimea | 55 |
| Aplicație | LCTV |
| Rezoluţie | 1920×1080 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 6000:1 |
| Culori | 1.07B |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CHIMEI INNOLUX |
| model de panou | V546H1-LS1 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 55 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | Super MVA, Normally Black, Transmissive |
| Zonă activă | 1209.6×680.4 mm |
| contur | 1261.6×732.4 mm |
| suprafaţă | Antiglare (Haze 11%) |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 6000:1 (Typ.) |
| culorile afișajului | 1.07B (8-bit + Hi-FRC), CIE193172% |
| timp de raspuns | 6 (Typ.)(G to G) |
| unghi de vedere | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| frecvență | 120Hz |
| tip lampa | 4 stringsWLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (4 ch, 10-bit), 102 pins |
| tensiune de intrare | 12.0V (Typ.) |
| aplicarea | LCTV |
