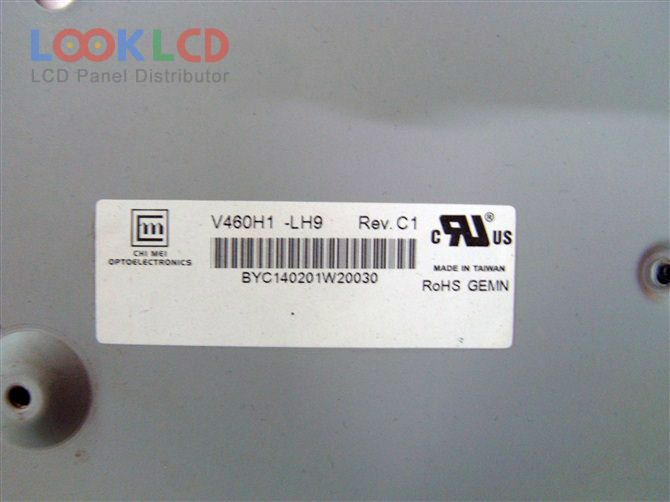

| PartNumber | V460H1-LH9 |
| Marca | Innolux |
| mărimea | 46 |
| Aplicație | LCTV |
| Rezoluţie | 1920×1080 |
| Compoziţie | LCM |
| Luminozitate | 450 |
| CR | 6000:1 |
| Culori | 16.7M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | CHIMEI INNOLUX |
| model de panou | V460H1-LH9 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 46 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | Super MVA, Normally Black, Transmissive |
| Zonă activă | 1018.08×572.67 mm |
| contur | 1083×627 mm |
| suprafaţă | Antiglare (Haze 11%), Hard coating (3H) |
| luminozitatea | 450 cd/m² (Typ.) |
| Raport de contrast | 6000:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193172% |
| timp de raspuns | 6.5ms |
| unghi de vedere | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| frecvență | 120Hz (60Hz Input) |
| tip lampa | 14 pcsCCFLEmbedded (Inverter) |
| interfață de semnal | LVDS (2 ch, 8/10-bit), 51 pins |
| tensiune de intrare | 12.0V (Typ.) |
| aplicarea | LCTV |
