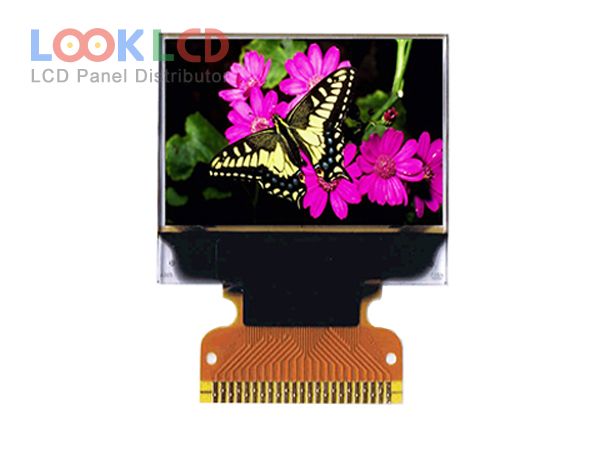

| PartNumber | UG-9664HDDAG01 |
| Marca | WiseChip |
| mărimea | 0.95 |
| Aplicație | IA |
| Rezoluţie | 96×64 |
| Compoziţie | OLED |
| Luminozitate | 100 |
| CR | 1000:1 |
| Culori | 65K |
| Iluminare de fundal | self |
| Interfață | CPU/SPI |
| marca panoului | WiseChip |
| model de panou | UG-9664HDDAG01 |
| tip panou | PM-OLED , OLED |
| dimensiunea panoului | 0.95 inch |
| rezoluţie | 96(RGB)×64 |
| Zonă activă | 20.14×13.42 mm |
| contur | 25.7×22.2×1.6 mm |
| suprafaţă | |
| luminozitatea | 100 cd/m² (Typ.) |
| Raport de contrast | 1000 : 1 (Typ.) |
| culorile afișajului | 65K |
| unghi de vedere | 80/80/80/80 (Min.)(L/R/U/D) |
| driver ic | COG Built-in SSD1331Z |
| interfață de semnal | 8-bit 6800/8080 parallel, 4-wire SPI, 23 pins |
| tensiune de intrare | 2.8/2.8/14.0V (Typ.)(VDD/VDDIO/VCC) |
| rohs: | |
| aplicarea | IA |
