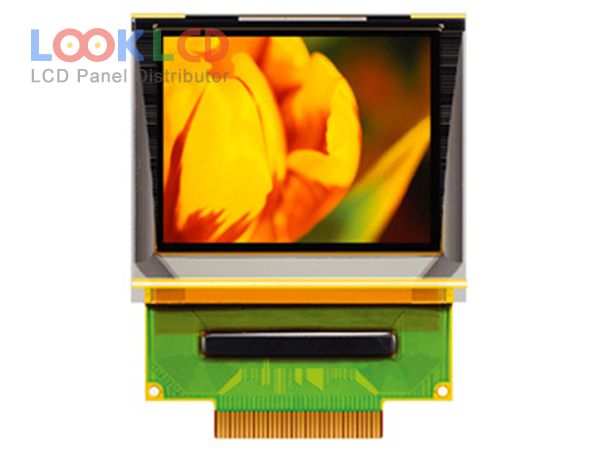

| PartNumber | UG-6028GDEAF01 |
| Marca | WiseChip |
| mărimea | 1.45 |
| Aplicație | IA |
| Rezoluţie | 160×128 |
| Compoziţie | OLED |
| Luminozitate | 100 |
| CR | 2000:1 |
| Culori | 262K |
| Iluminare de fundal | self |
| Interfață | CPU/RGB/SPI |
| marca panoului | Univision |
| model de panou | UG-6028GDEAF01 |
| tip panou | PM-OLED , OLED |
| dimensiunea panoului | 1.45 inch |
| rezoluţie | 160(RGB)×128 |
| Zonă activă | 28.78×23.024 mm |
| contur | 35.8×30.8×1.7 mm |
| suprafaţă | |
| luminozitatea | 100 cd/m² (Typ.) |
| Raport de contrast | 2000 : 1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| unghi de vedere | 80/80/80/80 (Min.)(L/R/U/D) |
| driver ic | COF Built-in SEPS525 |
| interfață de semnal | 8/9-bit 8080 parallel, 6-bit RGB, 4-wire SPI, 35 pins |
| tensiune de intrare | 2.8/2.8/13V (Typ.)(VDD/VDDIO/VDDH) |
| rohs: | |
| aplicarea | IA |
