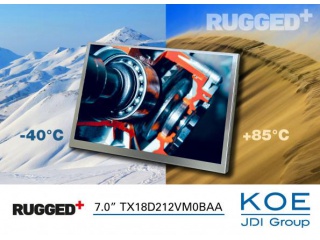

| PartNumber | TX18D212VM0BAA |
| Marca | KOE |
| mărimea | 7.0 |
| Aplicație | Industrial Outdoor H |
| Rezoluţie | 1280×768 |
| Compoziţie | a-Si TFT-LCD , LCM |
| Luminozitate | |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | |
| marca | KOE |
| dimensiunea diagonalei | 7.0 inch |
| format de pixeli | 1280(RGB)×768 [WXGA] 213PPI |
| Zonă activă | 152.448(H)×91.4688(V) mm |
| zona rama | 154.5(H)×93.5(V) mm |
| luminanţă | 1000 cd/m² (Typ.) |
| direcția vizualizării | Symmetry |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10) |
| culoare suport | 16.7M 72% NTSC |
| greutate | 212g (Typ.) |
| rata de cadre | 60Hz |
| model | TX18D212VM0BAA |
| tip | a-Si TFT-LCD , LCM |
| configurație | RGB Vertical Stripe |
| contur dim. | 164.4(H)×105(V) ×13.5(D) mm |
| tratament | - |
| Raport de contrast | 1000:1 (Typ.) (TM) |
| timp de raspuns | 25 (Max.)(Tr+Tf) |
| mod de operare | IPS, Normally Black, Transmissive |
| sursă de lumină | WLED , 50K hours , With LED Driver |
| proiectat pentru | Industrial Outdoor High Brightness |
| panou tactil | Without |
