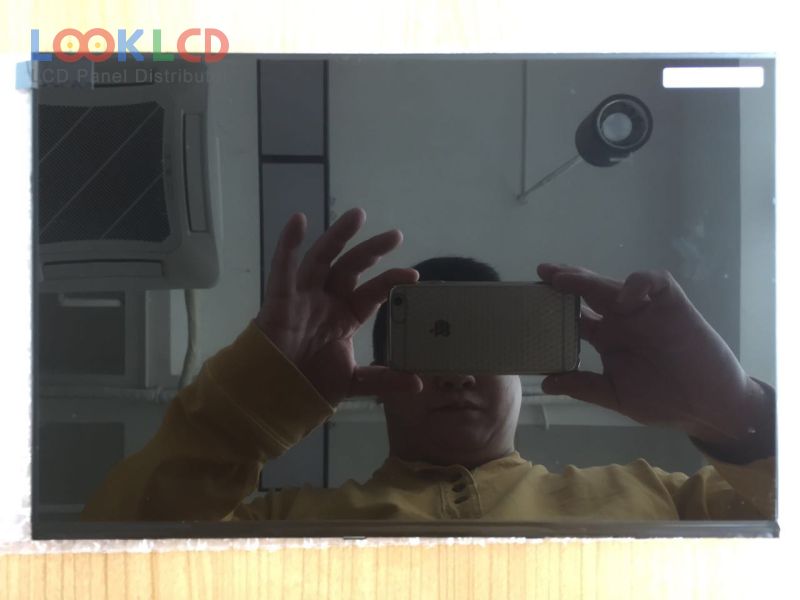

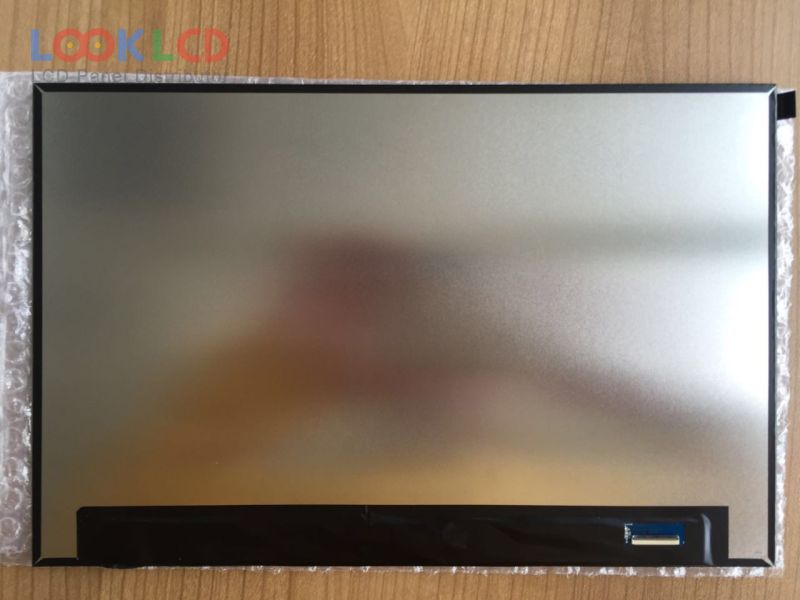

| PartNumber | TV122WXM-NW0 |
| Marca | BOE |
| mărimea | 12.2 |
| Aplicație | NBPC |
| Rezoluţie | 1280×800 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 900:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | eDP |
| marca panoului | BOE |
| model de panou | TV122WXM-NW0 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 12.2 inch |
| rezoluţie | 1280(RGB)×800 , WXGA |
| modul de afișare | ADS, Normally Black, Transmissive |
| Zonă activă | 262.565×164.16 mm |
| contur | 271.06×176.42×2.86 mm |
| suprafaţă | |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 900:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193150% |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDWithout Driver |
| interfață de semnal | eDP (2 Lanes), 39 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
