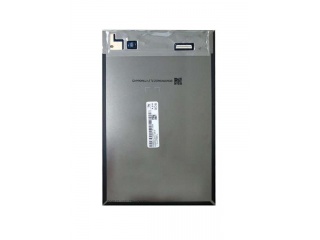

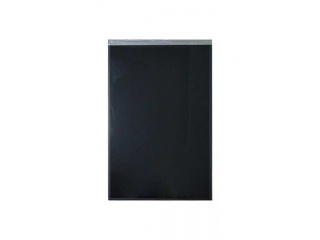

| PartNumber | TV080WUM-NL1 |
| Marca | BOE |
| mărimea | 8.0 |
| Aplicație | Pad & Tablet |
| Rezoluţie | 1200×1920 |
| Compoziţie | LCM , a-Si TFT-LCD |
| Luminozitate | |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | 8S3P |
| Interfață | MIPI |
| producător | BOE |
| numele modelului | TV080WUM-NL1 |
| marimea ecranului | 8.0 inch |
| tipul de ecran | LCM , a-Si TFT-LCD |
| numărul de pixeli | 1200(RGB)×1920 (WUXGA) 283PPI |
| aranjament | RGB Vertical Stripe |
| zona activa (mm) | 107.64 × 172.224 (H×V) |
| contur (mm) | 114.6 × 183.75 × 3.75 (H×V×D) |
| zona rama (mm) | - |
| tratament | Hard coating |
| luminanţă | 400 cd/m² (Typ.) |
| Raport de contrast | 1000 : 1 (Typ.) (TM) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10) |
| raspuns | 25 (Typ.)(Tr+Td) ms |
| vedere buna la | Symmetry |
| modul de lucru | ADS, Normally Black, Transmissive |
| adâncimea culorii | 16.7M 63% NTSC |
| lumina de fundal | 8S3P WLED , 15K hours , No Driver |
| masa | 85.0g (Max.) |
| folosit pentru | Pad & Tablet |
| rată de reîmprospătare | 60Hz |
| touch screen | Without |
| tipul semnalului | MIPI (4 data lanes) , 45 pins Connector |
| alimentare cu tensiune | 3.3V (Typ.) |
| max. evaluări | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C |
