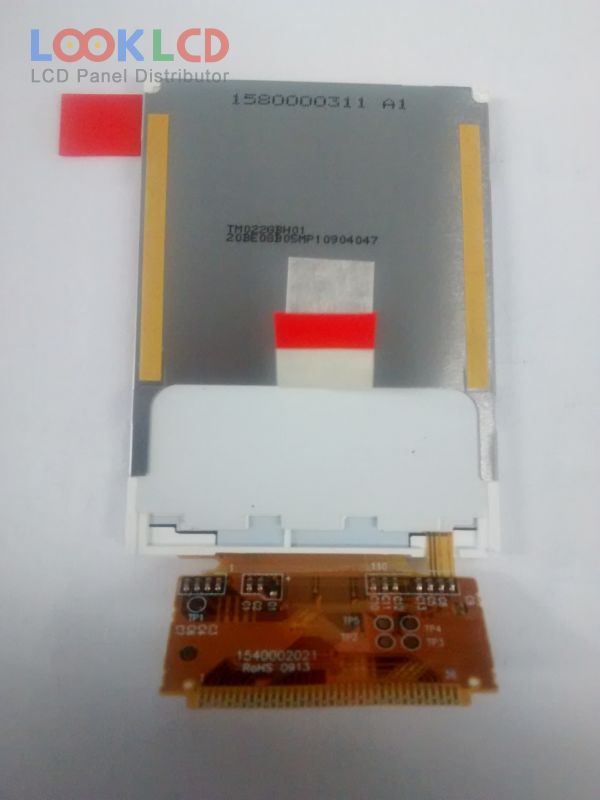

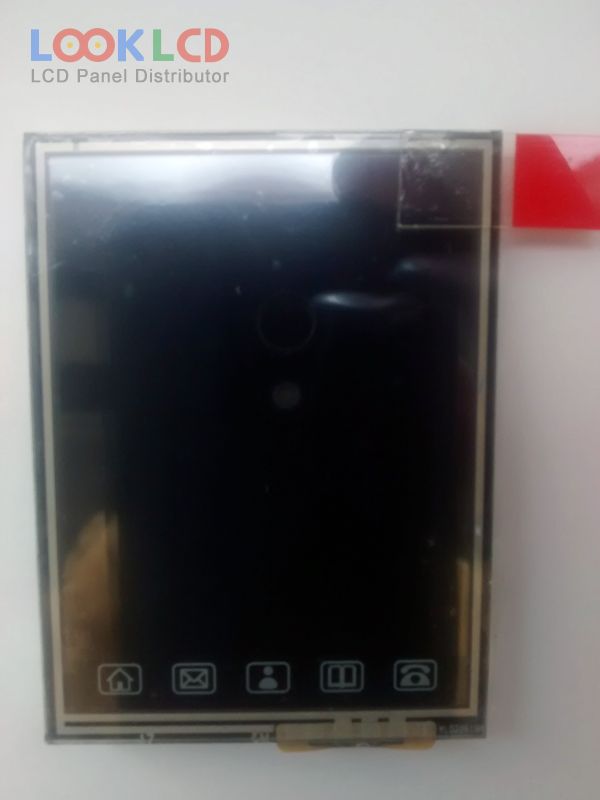

| PartNumber | TM022GBH01 |
| Marca | Tianma |
| mărimea | 2.2 |
| Aplicație | MPH |
| Rezoluţie | 176×220 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 350:1 |
| Culori | 65K/262K |
| Iluminare de fundal | WLED |
| Interfață | CPU |
| marca panoului | TIANMA |
| model de panou | TM022GBH01 1 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 2.2 inch |
| rezoluţie | 176(RGB)×220 , QCIF+ |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 34.848×43.56 mm |
| contur | 41.7×56.16 mm |
| suprafaţă | Clear, Hard coating (3H) |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 350:1 (Typ.) |
| culorile afișajului | 65K/262K , CIE193160% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 45/45/40/20 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 1S3PWLEDWithout Driver |

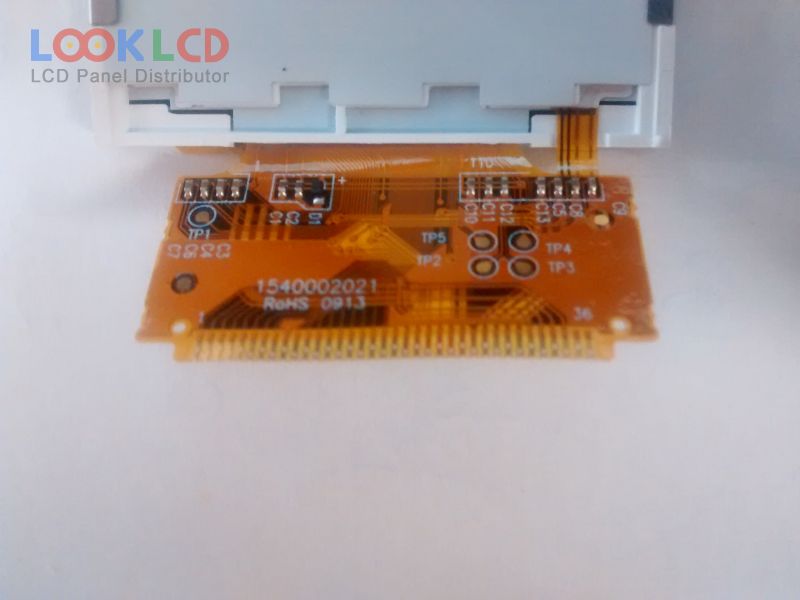

| interfață de semnal | CPU, 36 pins |
| tensiune de intrare | 2.8V (Typ.)(VDD) |
| aplicarea | MPH |
