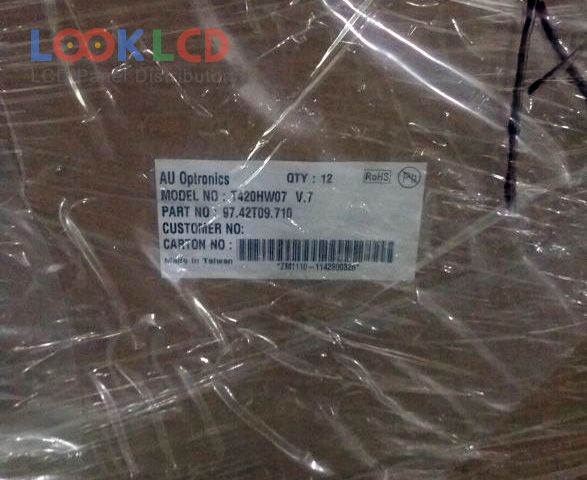

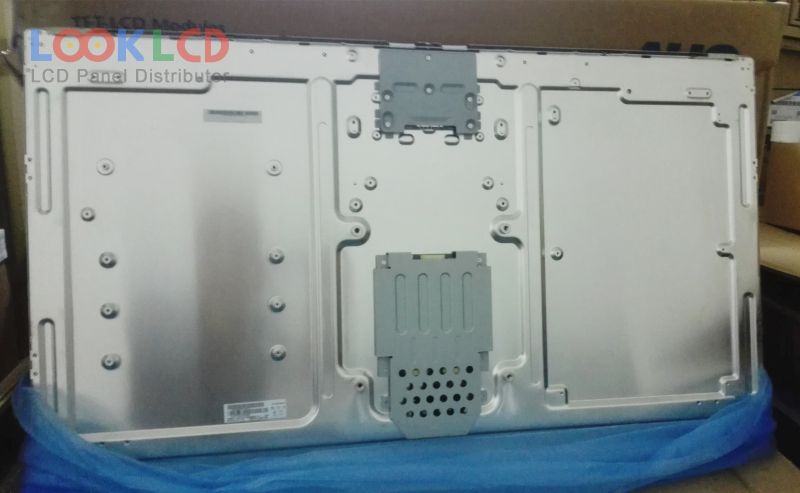

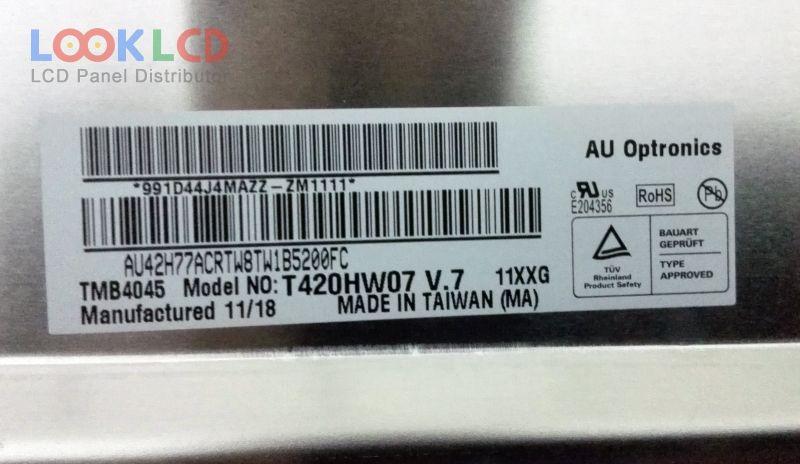

| PartNumber | T420HW07 V7 |
| Marca | AUO |
| mărimea | 42 |
| Aplicație | LCTV |
| Rezoluţie | 1920×1080 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 4000:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | AUO |
| model de panou | T420HW07 V7 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 42 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | AMVA3, Normally Black, Transmissive |
| Zonă activă | 930.24×523.26 mm |
| contur | 973.2×566.2 mm |
| suprafaţă | Hard coating (3H) |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 4000:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193172% |
| timp de raspuns | 6.5 (Typ.)(G to G) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (2 ch, 8-bit), 51 pins |
| tensiune de intrare | 12.0V (Typ.) |
| aplicarea | LCTV |
| T420HVN01.0 | AUO | 42 | 1920×1080 |
| T420HVN02.0 | AUO | 42 | 1920×1080 |
| T420HVN02.1 | AUO | 42 | 1920×1080 |
| T420HVN08.0 | AUO | 42 | 1920×1080 |
| T420HW04 V0 | AUO | 42 | 1920×1080 |
| T420HW04 V2 | AUO | 42 | 1920×1080 |
| T420HW05 V3 | AUO | 42 | 1920×1080 |
| T420HW07 V0 | AUO | 42 | 1920×1080 |
| T420HW07 V5 | AUO | 42 | 1920×1080 |
| T420HW08 V0 CELL | AUO | 42 | 1920×1080 |
| HV320WX2-201 | BOE | 31.5 | 1366×768 |
| LC260EXN-SCA1 | LG Display | 26.0 | 1366×768 |
| LC320EXN-SDA3 | LG Display | 31.5 | 1366×768 |
| LC320WXN-SBD1 | LG Display | 31.5 | 1366×768 |
| LC420DUH-FGA2 | LG Display | 42 | 1920×1080 |
| LC420EUF-SCR1 | LG Display | 42 | 1920×1080 |
| LTA220W1-L01 | Samsung | 22.0 | 1280×720 |
| LTA320AP12 | Samsung | 31.5 | 1366×768 |
| T370HW03 VQ | AUO | 37 | 1920×1080 |
| V390HK1-LS5 | Innolux | 39 | 1920×1080 |
