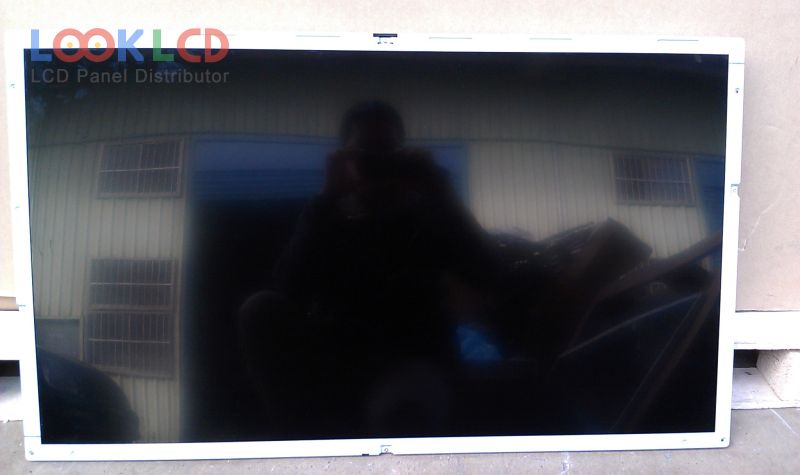

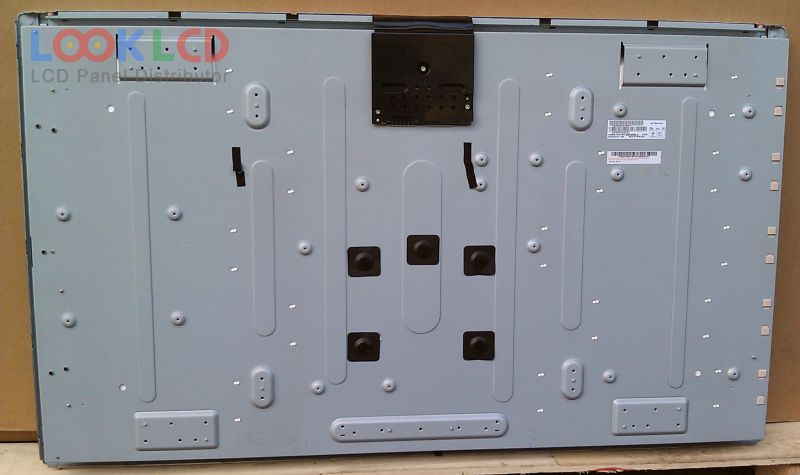

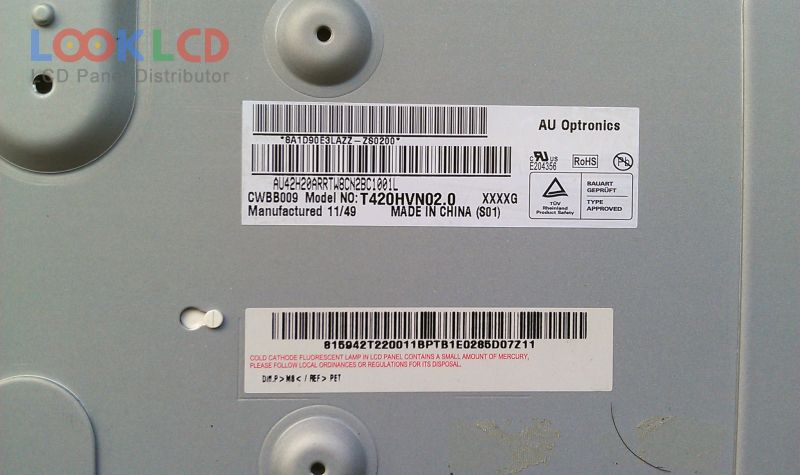

| PartNumber | T420HVN02.0 |
| Marca | AUO |
| mărimea | 42 |
| Aplicație | LCTV |
| Rezoluţie | 1920×1080 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 2000:1 |
| Culori | 16.7M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | AUO |
| model de panou | T420HVN02.0 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 42 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | AMVA, Normally Black, Transmissive |
| Zonă activă | 930.24×523.26 mm |
| contur | 983×576 mm |
| suprafaţă | Antiglare (Haze 2%), Hard coating (3H) |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 2000:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193172% |
| timp de raspuns | 6.5 (Typ.)(G to G) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 10 pcsCCFLEmbedded (Balance board) |
| interfață de semnal | LVDS (2 ch, 8-bit), 51 pins |
| tensiune de intrare | 12.0V (Typ.) |
| aplicarea | LCTV |
| T420HVN02.0 | AUO | 42 | 1920×1080 |
| T420HVN05.2 | AUO | 42 | 1920×1080 |
| T420HVN08.0 | AUO | 42 | 1920×1080 |
| T420HW01 V2 | AUO | 42 | 1920×1080 |
| T420HW02 V0 | AUO | 42 | 1920×1080 |
| T420HW04 V0 | AUO | 42 | 1920×1080 |
| T420HW06 V5 | AUO | 42 | 1920×1080 |
| T420HW07 V5 | AUO | 42 | 1920×1080 |
| T420HW08 V5 | AUO | 42 | 1920×1080 |
| T420HW09 V2 | AUO | 42 | 1920×1080 |
| LC470WU1-SLA1 | LG Display | 47 | 1920×1080 |
| LC550DUE-MGA3 | LG Display | 55 | 1920×1080 |
| LC550EGY-SHM2 | LG Display | 55 | 3840×2160 |
| LC550EUF-PGF1 | LG Display | 55 | 1920×1080 |
| LK460D3FZ10 | SHARP | 46 | 1920×1080 |
| LSC460HN03-W | Samsung | 46 | 1920×1080 |
| LTY460HB01 | Samsung | 46 | 1920×1080 |
| V315B1-L01 | Innolux | 31.5 | 1366×768 |
| V400H1-L01 | Innolux | 40 | 1920×1080 |
| V420H2-LE3 | Innolux | 42 | 1920×1080 |
