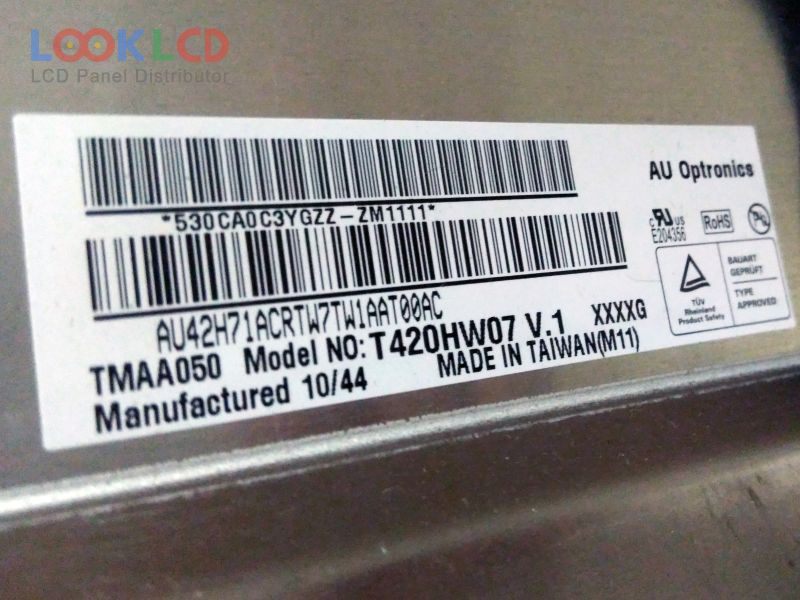

| PartNumber | T420HW07 V1 |
| Marca | AUO |
| mărimea | 42 |
| Aplicație | LCTV |
| Rezoluţie | 1920×1080 |
| Compoziţie | LCM |
| Luminozitate | 450 |
| CR | 4000:1 |
| Culori | 1.07B |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | AUO |
| model de panou | T420HW07 V1 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 42 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | AMVA3, Normally Black, Transmissive |
| Zonă activă | 930.24×523.26 mm |
| contur | 973.2×566.2×23.9 mm |
| suprafaţă | Antiglare (Haze 11%), Hard coating (3H) |
| luminozitatea | 450 cd/m² (Typ.) |
| Raport de contrast | 4000:1 (Typ.) |
| culorile afișajului | 1.07B (8-bit + Hi-FRC), CIE193172% |
| timp de raspuns | 6.5 (Typ.)(G to G) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 120Hz |
| tip lampa | WLEDWithout Driver |
| interfață de semnal | LVDS (4 ch, 10-bit), 92 pins |
| tensiune de intrare | 12.0V (Typ.) |
| aplicarea | LCTV |
