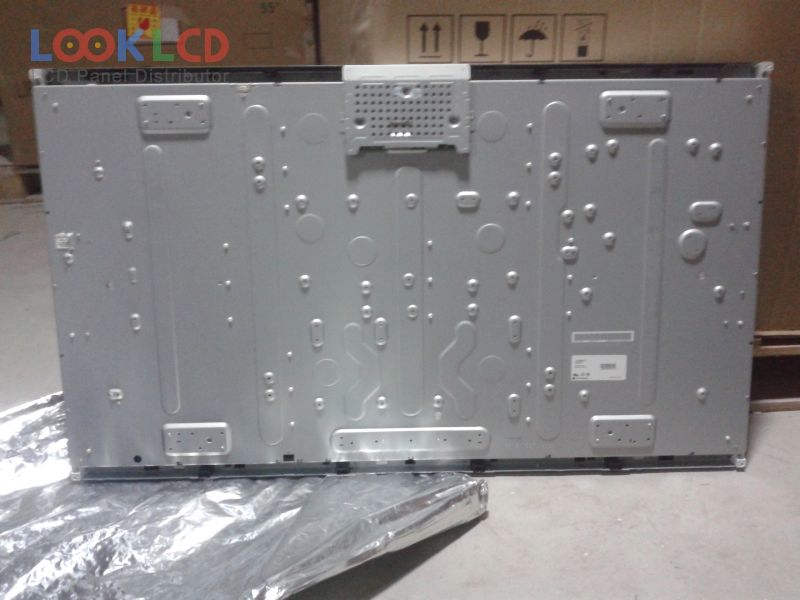

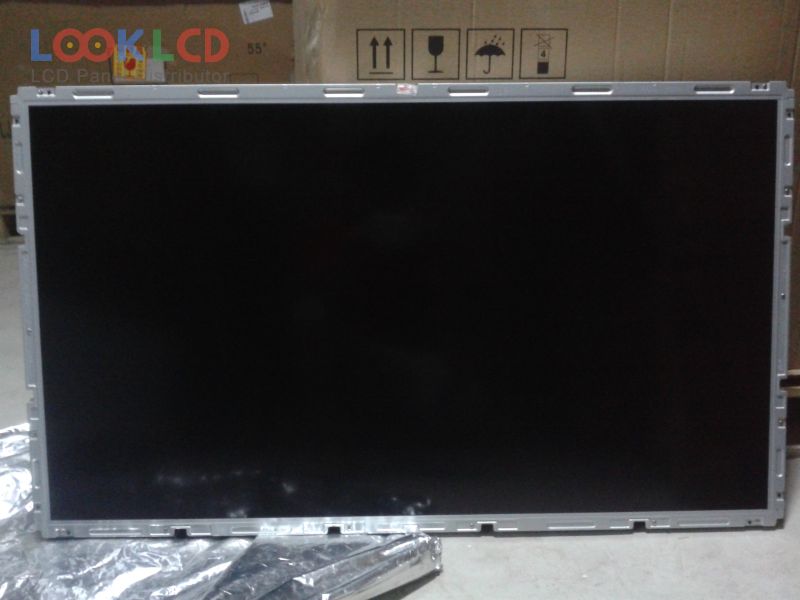

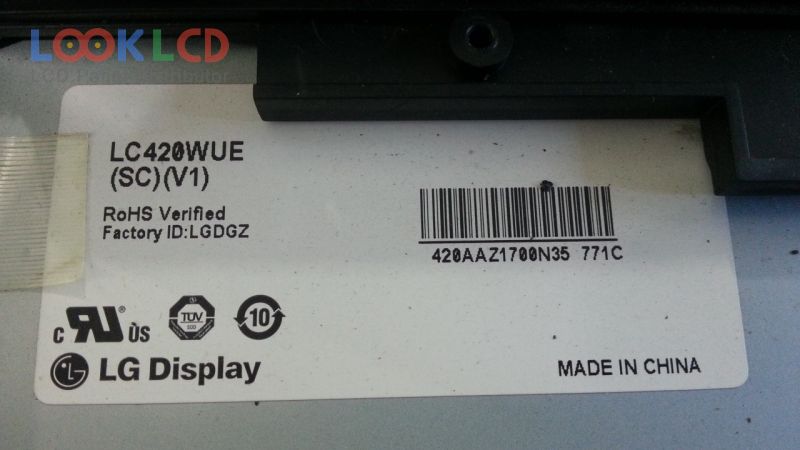

| PartNumber | LC420WUE-SCV1 |
| Marca | LG Display |
| mărimea | 42 |
| Aplicație | LCTV |
| Rezoluţie | 1920×1080 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 1000:1 |
| Culori | 16.7M/1.06B |
| Iluminare de fundal | EEFL |
| Interfață | LVDS |
| marca panoului | LG Display |
| model de panou | LC420WUE-SCV1 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 42 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | IPS, Normally Black, Transmissive |
| Zonă activă | 930.24×523.26 mm |
| contur | 983×576 mm |
| suprafaţă | Antiglare (Haze 10%), Hard coating (3H) |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M/1.06B (8-bit / 8-bit + Dithering), CIE193172% |
| timp de raspuns | 5 (Typ.)(G to G) |
| unghi de vedere | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | EEFLWithout Driver |
| interfață de semnal | LVDS (2 ch, 8/10-bit), 51 pins |
| tensiune de intrare | 12.0V (Typ.) |
| aplicarea | LCTV |
