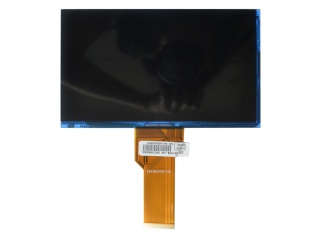

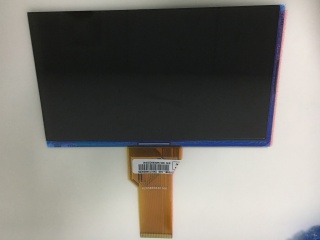

| PartNumber | NE070NB-04G |
| Marca | Innolux |
| mărimea | 7.0 |
| Aplicație | Digital Photo Frame |
| Rezoluţie | 800×480 |
| Compoziţie | a-Si TFT-LCD , CELL |
| Luminozitate | |
| CR | 500:1 |
| Culori | 16.7M |
| Iluminare de fundal | No |
| Interfață | Parallel |
| marca | Innolux |
| dimensiunea diagonalei | 7.0 inch |
| format de pixeli | 800(RGB)×480 [WVGA] 134PPI |
| Zonă activă | 154.08(H)×85.92(V) mm |
| zona rama | - |
| luminanţă | 0 cd/m² |
| direcția vizualizării | - |
| unghi de vedere | 70/70/50/70 (Typ.)(CR≥10) |
| grosimea farfuriei | 0.50+0.50 mm |
| culoare suport | 16.7M |
| greutate | 47.0g (Typ.) |
| rata de cadre | 60Hz |
| detaliu d-ic | COG Built-in 1 source + 1 gate chips |
| tipul de interfață | Parallel RGB (1 ch, 8-bit) , 50 pins FPC |
| alimentare electrică | 3.3/10.4/15/-10V (Typ.)(DVDD/AVDD/VGH/VGL) |
| mediu inconjurator | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| model | NE070NB-04G |
| tip | a-Si TFT-LCD , CELL |
| configurație | RGB Vertical Stripe |
| contur dim. | 162.5(H)×96.62(V) ×1.43(D) mm |
| tratament | Antiglare |
| Raport de contrast | 500:1 (Typ.) (TM) |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| mod de operare | TN, Normally White, Transmissive |
| transmitanța | 4.61% (Typ.)(with Polarizer) |
| sursă de lumină | No B/L |
| proiectat pentru | Digital Photo Frame |
| panou tactil | Without |
