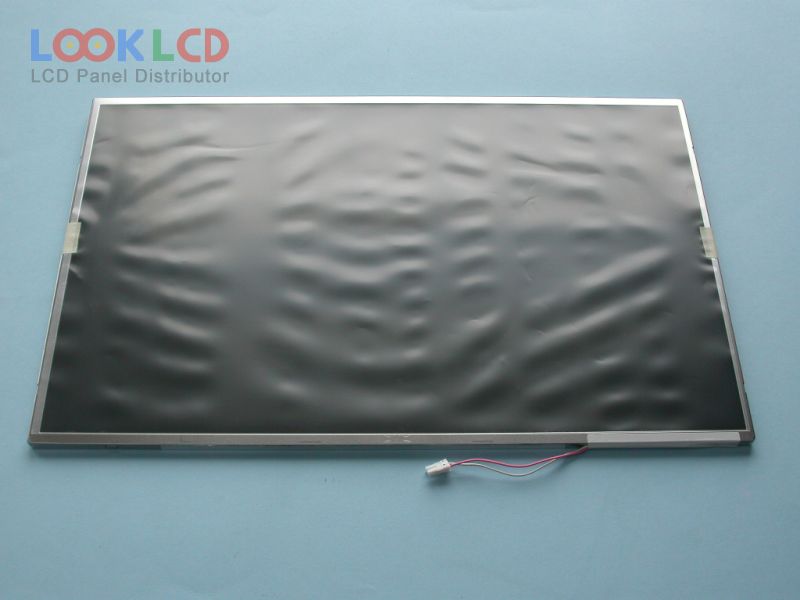

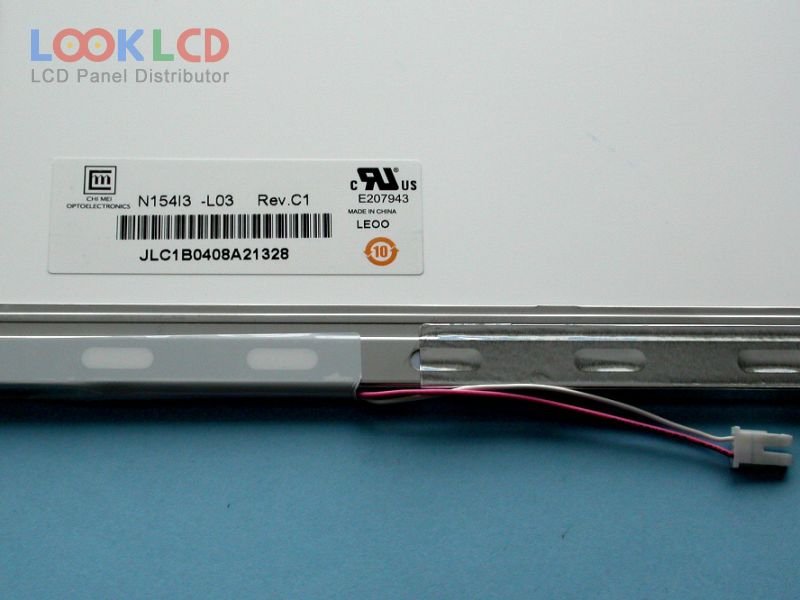

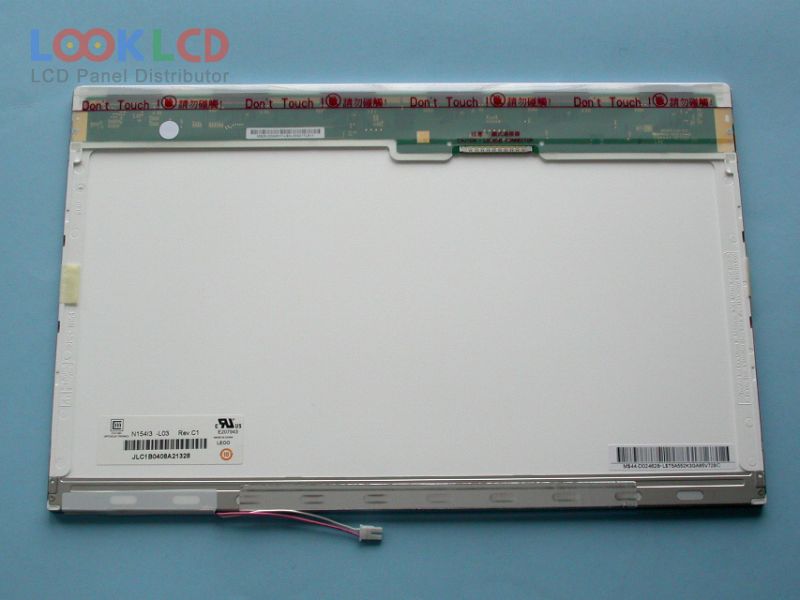

| PartNumber | N154I3-L03 |
| Marca | Innolux |
| mărimea | 15.4 |
| Aplicație | NBPC |
| Rezoluţie | 1280×800 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | CMO |
| model de panou | N154I3-L03 27 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 15.4 inch |
| rezoluţie | 1280(RGB)×800 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 331.2×207 mm |
| contur | 344×222×6.2 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Glare (Haze 0%), Hard coating (3H) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 3/5 (Typ.)(Tr/Td) |
| unghi de vedere | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (1 ch, 6-bit), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| LTN154AT01-A01 | Samsung | 15.4 | 1280×800 |
| LTN154U2-L04-0 | Samsung | 15.4 | 1920×1200 |
| N154I2-L01 | Innolux | 15.4 | 1280×800 |
| N154I2-L02 | Innolux | 15.4 | 1280×800 |
| N154I2-L05 | Innolux | 15.4 | 1280×800 |
| N154I3-L03 | Innolux | 15.4 | 1280×800 |
| N154I4-L03 | Innolux | 15.4 | 1280×800 |
| N154I4-L04 | Innolux | 15.4 | 1280×800 |
| N154I5-L02 | Innolux | 15.4 | 1280×800 |
| N154I6-L03 | Innolux | 15.4 | 1280×800 |
| B133HAN02.0 | AUO | 13.3 | 1920×1080 |
| B140XTN03.5 | AUO | 14.0 | 1366×768 |
| B156HW01 V3 | AUO | 15.6 | 1920×1080 |
| LP101WH1-TLB2 | LG Display | 10.1 | 1366×768 |
| LP154WP2-TLA1 | LG Display | 15.4 | 1440×900 |
| LP173WF1-TLB3 | LG Display | 17.3 | 1920×1080 |
| LTD111EXCK | TOSHIBA | 11.1 | 1366×768 |
| LTN156AT20-P01 | Samsung | 15.6 | 1366×768 |
| N156B6-L07 | Innolux | 15.6 | 1366×768 |
| N156BGE-L51 | Innolux | 15.6 | 1366×768 |
