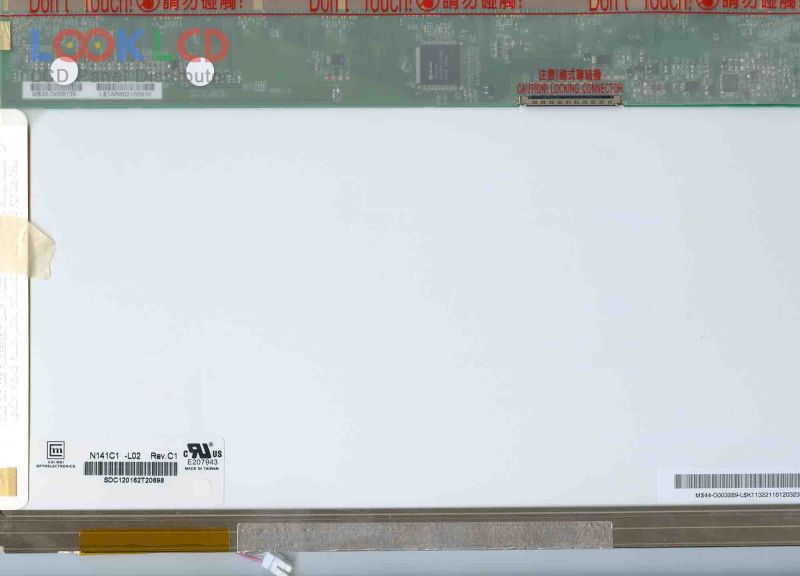

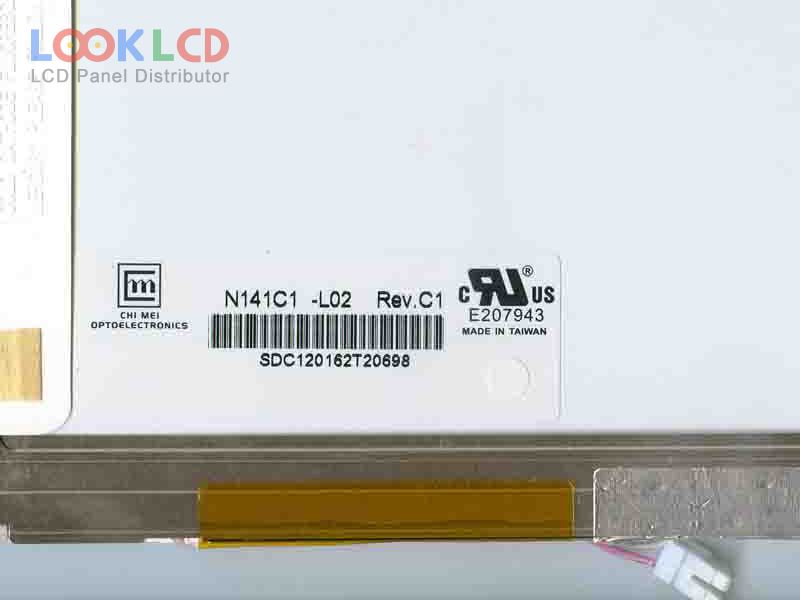

| PartNumber | N141C1-L02 |
| Marca | Innolux |
| mărimea | 14.1 |
| Aplicație | NBPC |
| Rezoluţie | 1440×900 |
| Compoziţie | LCM |
| Luminozitate | 230 |
| CR | 700:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | CMO |
| model de panou | N141C1-L02 3 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 14.1 inch |
| rezoluţie | 1440(RGB)×900 , WXGA+ |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 303.48×189.675 mm |
| contur | 319.5×205.5×5.5 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Glare (Haze 0%), Hard coating (3H), Reflection 2.0% (Max.) |
| luminozitatea | 230 cd/m² (Typ.) |
| Raport de contrast | 700:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 5/11 (Typ.)(Tr/Td) |
| unghi de vedere | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (2 ch, 6-bit), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| LP141WX3-TLA3 | LG Display | 14.1 | 1280×800 |
| LP141WX5-TLC1 | LG Display | 14.1 | 1280×800 |
| LTD141EC7B | TOSHIBA | 14.1 | 1024×768 |
| M141NWW1-102 | IVO | 14.1 | 1280×800 |
| N141C1-L01 | Innolux | 14.1 | 1440×900 |
| N141C1-L02 | Innolux | 14.1 | 1440×900 |
| N141C1-L05 | Innolux | 14.1 | 1440×900 |
| N141C3-L02 | Innolux | 14.1 | 1440×900 |
| N141C3-L04 | Innolux | 14.1 | 1440×900 |
| LP133WX2-TLC1 | LG Display | 13.3 | 1280×800 |
| LP140WD1-TLD2 | LG Display | 14.0 | 1600×900 |
| LP140WF6-SPB3 | LG Display | 14.0 | 1920×1080 |
| LP154WU1-TLC1 | LG Display | 15.4 | 1920×1200 |
| LP156WHU-TPB1 | LG Display | 15.6 | 1366×768 |
| LQ170M1LA12 | SHARP | 17.0 | 1920×1200 |
| LTN121W1-L02 | Samsung | 12.1 | 1280×800 |
| LTN133W1-L01 | Samsung | 13.3 | 1280×800 |
| LTN141AT13-B01 | Samsung | 14.1 | 1280×800 |
| LTN170CT08-L01 | Samsung | 17.0 | 1920×1200 |
