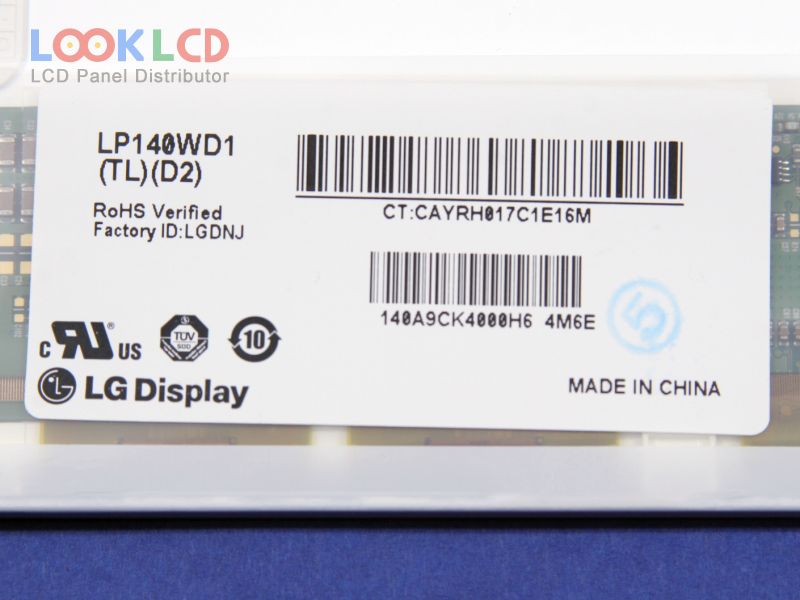

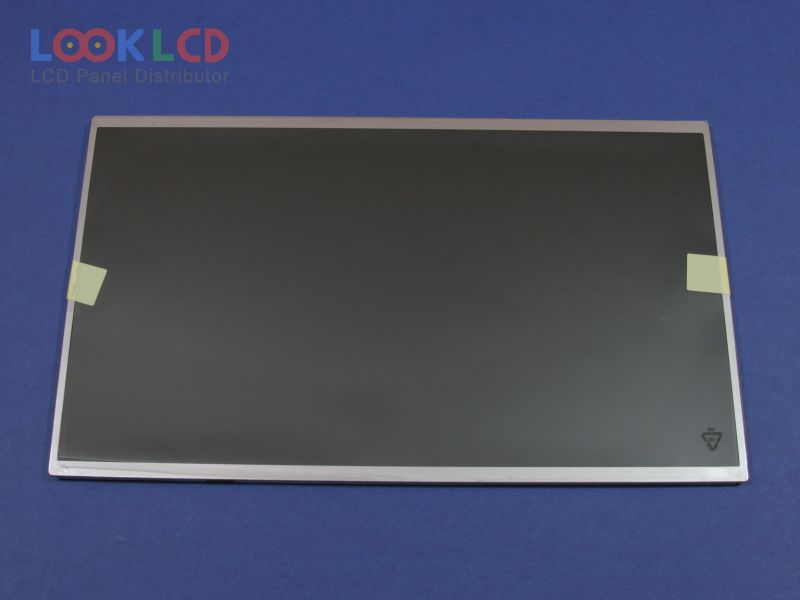

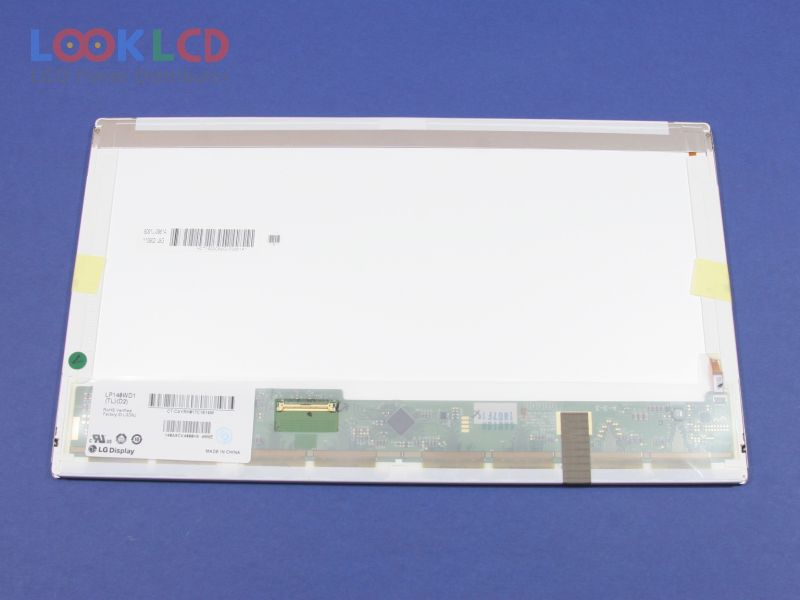

| PartNumber | LP140WD1-TLD2 |
| Marca | LG Display |
| mărimea | 14.0 |
| Aplicație | NBPC |
| Rezoluţie | 1600×900 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 300:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | LG Display |
| model de panou | LP140WD1-TLD2 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 14.0 inch |
| rezoluţie | 1600(RGB)×900 , HD+ |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 309.6×174.15 mm |
| contur | 323.5×192×5.2 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Antiglare |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 300:1 (Min.) |
| culorile afișajului | 262K (6-bit), CIE193160% |
| timp de raspuns | 8 (Typ.)(Tr+Td) |
| unghi de vedere | 40/40/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (2 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
