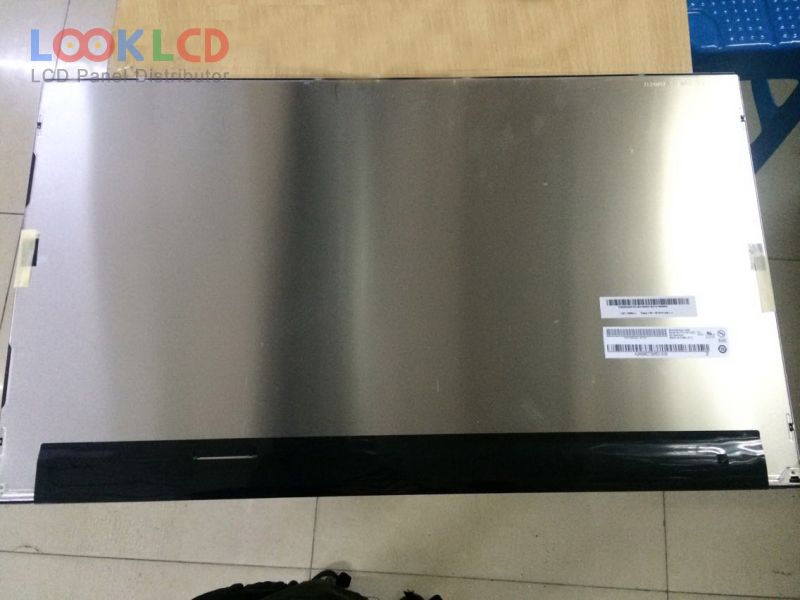

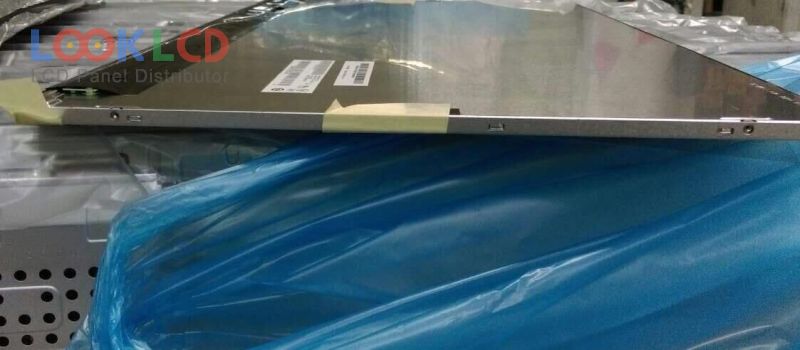

| PartNumber | M240HW02 V7 |
| Marca | AUO |
| mărimea | 24.0 |
| Aplicație | DMPC |
| Rezoluţie | 1920×1080 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 5000:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | AUO |
| model de panou | M240HW02 V7 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 24.0 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | VA, Normally Black, Transmissive |
| Zonă activă | 531.36×298.89 mm |
| contur | 556×323.2×9.6 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 5000:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit) |
| timp de raspuns | 7/5 (Typ.)(Tr/Td) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 17S4PWLEDWithout Driver |
| interfață de semnal | LVDS (2 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
