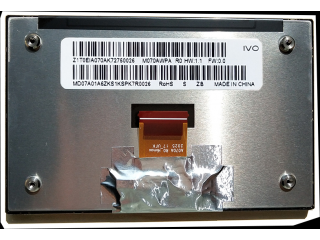

| PartNumber | M070AWPA R0 |
| Marca | IVO |
| mărimea | 7.0 |
| Aplicație | Outdoor High Brightn |
| Rezoluţie | 800×480 |
| Compoziţie | a-Si TFT-LCD, LCM |
| Luminozitate | |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | Parallel |
| marca | IVO |
| model | M070AWPA R0 |
| dimensiunea diagonalei | 7.0 inch |
| tip | a-Si TFT-LCD, LCM |
| format de pixeli | 800(RGB)×480 [WVGA] 133PPI |
| configurație | RGB Vertical Stripe |
| Zonă activă | 152.4(H)×91.4(V) mm |
| contur dim. | 166(H)×105.8(V) ×10.5(D) mm |
| zona rama | - |
| tratament | Antiglare, Hard coating (3H) |
| luminanţă | 1000 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) (TM) |
| direcția vizualizării | Symmetry |
| timp de raspuns | 20 (Typ.)(Tr+Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10) |
| mod de operare | IPS, Normally Black, Transmissive |
| culoare suport | 16.7M 72% NTSC |
| sursă de lumină | WLED [6S3P] , 30K hours , W/O Driver |
| greutate | 187/206g (Typ./Max.) |
| proiectat pentru | Outdoor High Brightness Automotive Display |
| rata de cadre | 60Hz |
| panou tactil | Without |
| tipul de interfață | Parallel RGB (1 ch, 8-bit) , 50 pins FPC |
| alimentare electrică | 3.3V (Typ.) |
| mediu inconjurator | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C |
| AT070TN83 V.3 | Innolux | 7.0 | 800×480 |
| C070VW02 V1 | AUO | 7.0 | 800×480 |
| CLAA069LA0NCW | CPT | 7.0 | 800×480 |
| CLAA070ND23CW | CPT | 7.0 | 1024×600 |
| CLAA070NJ07CW | CPT | 7.0 | 1024×600 |
| HJ070NA-13A | Innolux | 7.0 | 1024×600 |
| HJ070NA-13D | Innolux | 7.0 | 1024×600 |
| LA070WV4-SD04 | LG Display | 7.0 | 800×480 |
| LD070WS2-SL03 | LG Display | 7.0 | 1024×600 |
| TD070WGCB2 | TPO | 7.0 | 854×480 |
