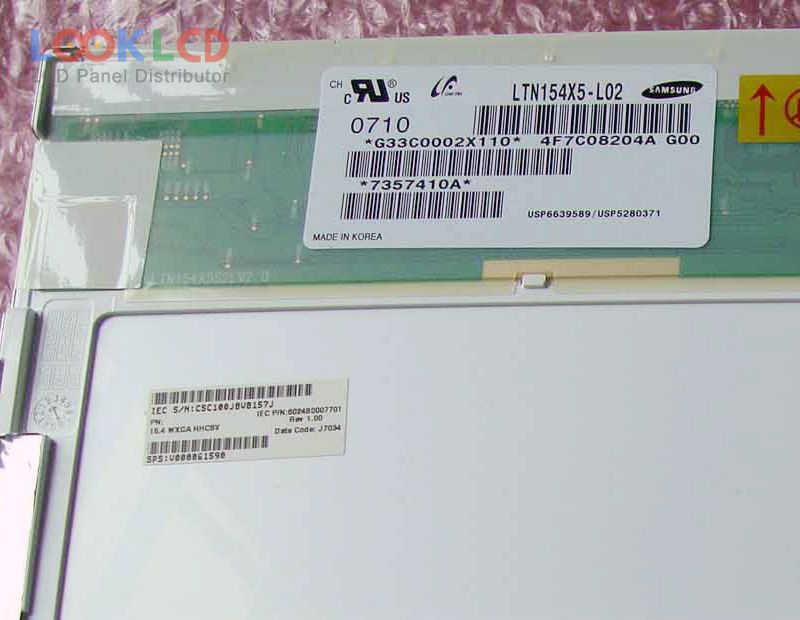

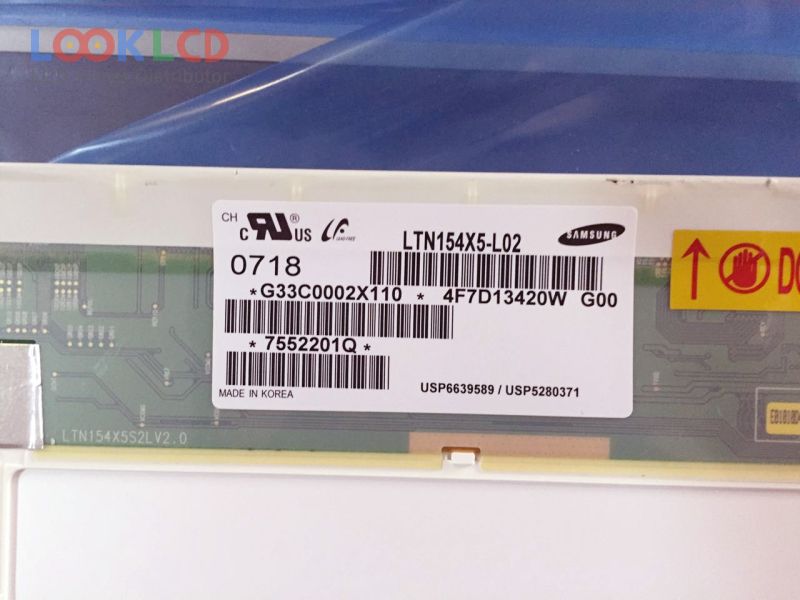

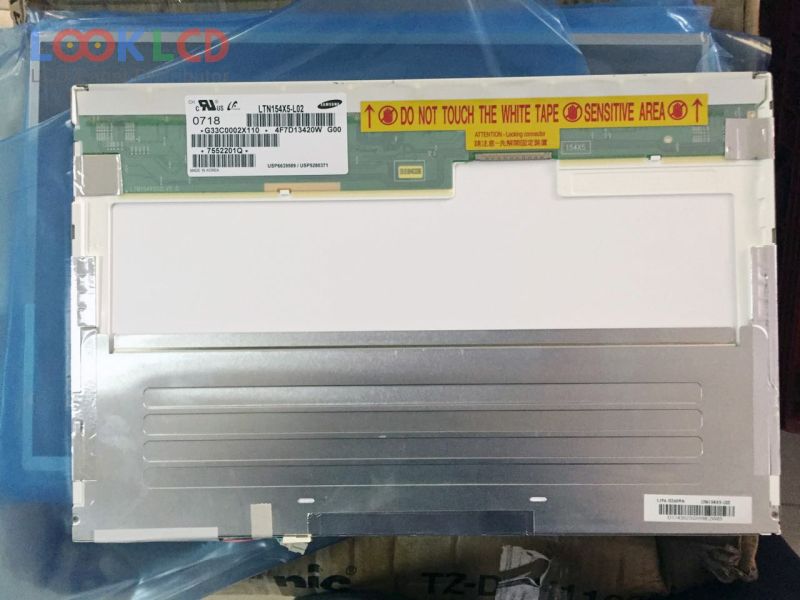

| PartNumber | LTN154X5-L02 |
| Marca | Samsung |
| mărimea | 15.4 |
| Aplicație | NBPC |
| Rezoluţie | 1280×800 |
| Compoziţie | LCM |
| Luminozitate | 490 |
| CR | 700:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | SAMSUNG |
| model de panou | LTN154X5-L02 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 15.4 inch |
| rezoluţie | 1280(RGB)×800 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 331.2×207 mm |
| contur | 344×224×10.5 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Glare (Haze 0%), Hard coating (3H) |
| luminozitatea | 490 cd/m² (Typ.) |
| Raport de contrast | 700:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193172% |
| timp de raspuns | 16 (Typ.)(Tr+Td) |
| unghi de vedere | 65/65/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 2 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (1 ch, 6-bit), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| rohs: | |
| aplicarea | NBPC |
