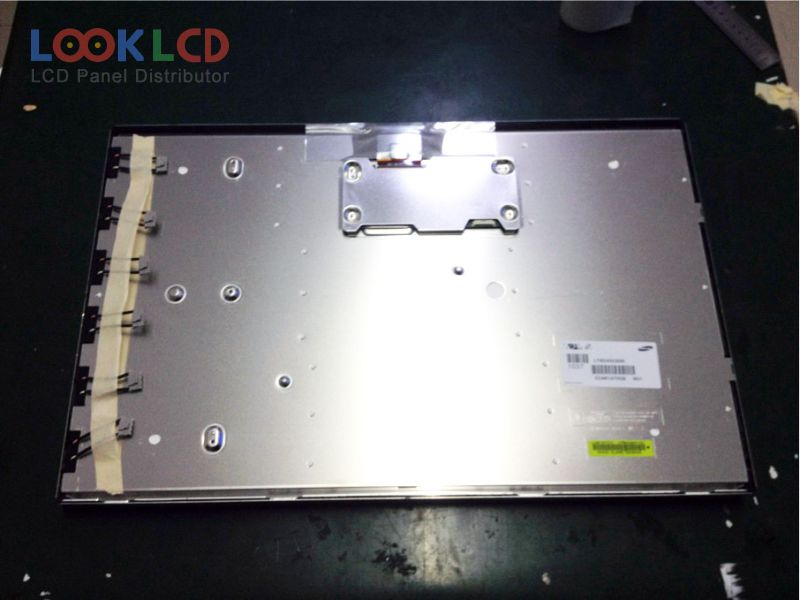

| PartNumber | LTM240CS09 |
| Marca | Samsung |
| mărimea | 24.0 |
| Aplicație | DMPC |
| Rezoluţie | 1920×1200 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | SAMSUNG |
| model de panou | LTM240CS09 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 24.0 inch |
| rezoluţie | 1920(RGB)×1200 , WUXGA |
| modul de afișare | S-PVA, Normally Black, Transmissive |
| Zonă activă | 518.4×324 mm |
| contur | 546.4×352 mm |
| suprafaţă | Antiglare (Haze 50%), Hard coating (3H) |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193192% |
| timp de raspuns | 11/5 (Typ.)(Tr/Td); 6 (Typ.)(G to G) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 6 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (2 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
