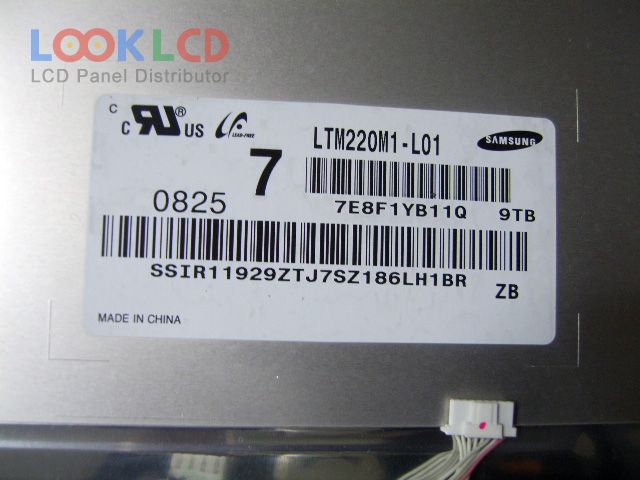

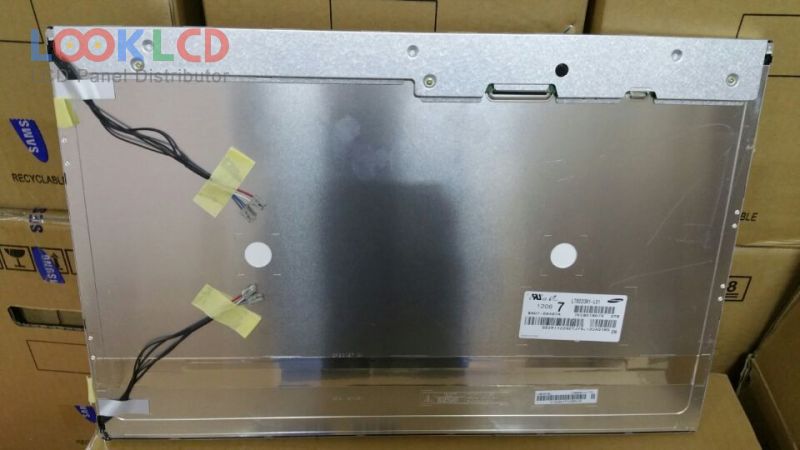

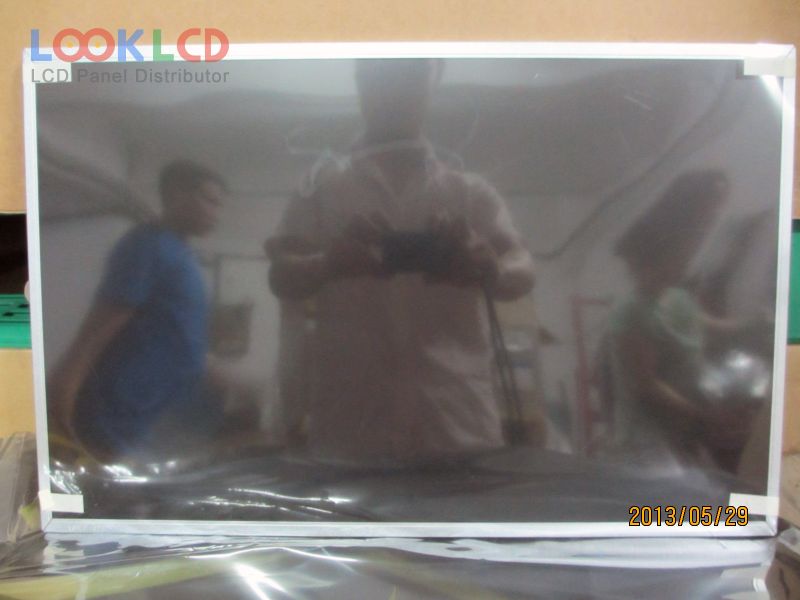

| PartNumber | LTM220M1-L01 |
| Marca | Samsung |
| mărimea | 22.0 |
| Aplicație | DMPC |
| Rezoluţie | 1680×1050 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | SAMSUNG |
| model de panou | LTM220M1-L01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 22.0 inch |
| rezoluţie | 1680(RGB)×1050 , WSXGA+ |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 473.76×296.1 mm |
| contur | 493.7×320.1 mm |
| suprafaţă | Antiglare (Haze 25%), Hard coating (3H) |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC), CIE193172% |
| timp de raspuns | 1.3/3.7 (Typ.)(Tr/Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (2 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
| LM220W1-A2MN | LG Display | 22.0 | 1600×1024 |
| LM220WE1-TLK1 | LG Display | 22.0 | 1680×1050 |
| LTM220CS01 | Samsung | 22.0 | 1920×1200 |
| LTM220M1-L01 | Samsung | 22.0 | 1680×1050 |
| LTM220M1-L02(Glare) | Samsung | 22.0 | 1680×1050 |
| LTM220M3-L02 | Samsung | 22.0 | 1680×1050 |
| LTM220MT05 | Samsung | 22.0 | 1680×1050 |
| LTM220MT09 | Samsung | 22.0 | 1680×1050 |
| LTM220MT12 | Samsung | 22.0 | 1680×1050 |
| M220Z1-L09 | Innolux | 22.0 | 1680×1050 |
| LM190E08-TLGD | LG Display | 19.0 | 1280×1024 |
| LM201W01-STB1 | LG Display | 20.1 | 1680×1050 |
| LM220WE5-TLA1 | LG Display | 22.0 | 1680×1050 |
| LM238WF2-SSF1 | LG Display | 23.8 | 1920×1080 |
| LTM15C423S | TOSHIBA | 15.0 | 1024×768 |
| LTM201M2-L02 | Samsung | 20.1 | 1680×1050 |
| M170E5-L0A | Innolux | 17.0 | 1280×1024 |
| M190EG02 V9 | AUO | 19.0 | 1280×1024 |
| M240HW02 V7 | AUO | 24.0 | 1920×1080 |
| M270HW02 V1 | AUO | 27.0 | 1920×1080 |
