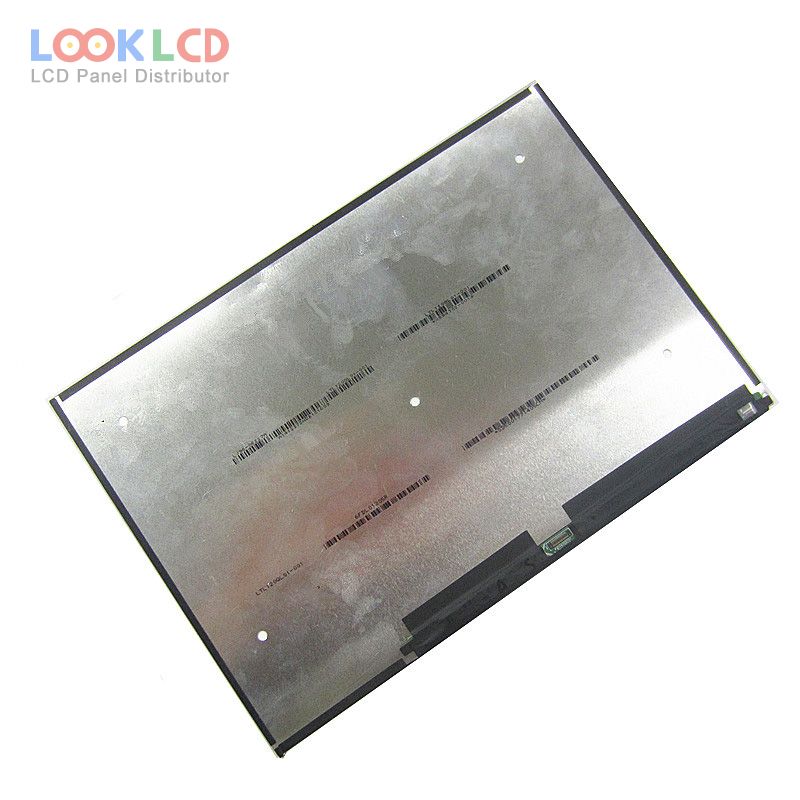

| PartNumber | LTL120QL01-001 |
| Marca | Samsung |
| mărimea | 12.0 |
| Aplicație | PAD |
| Rezoluţie | 2160×1440 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 800:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | eDP |
| marca panoului | SAMSUNG |
| model de panou | LTL120QL01-001 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 12.0 inch |
| rezoluţie | 2160(RGB)×1440 |
| modul de afișare | PLS, Normally Black, Transmissive |
| Zonă activă | 254.016×169.344 mm |
| contur | 263.42×182.26×4.29 mm |
| suprafaţă | Glare (Haze 0%), Hard coating (2H) |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193172% |
| timp de raspuns | 25/35 (Max.)(Tr/Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 9S6PWLEDEmbedded (LED Driver) |
| interfață de semnal | eDP (4 Lanes), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PAD |
