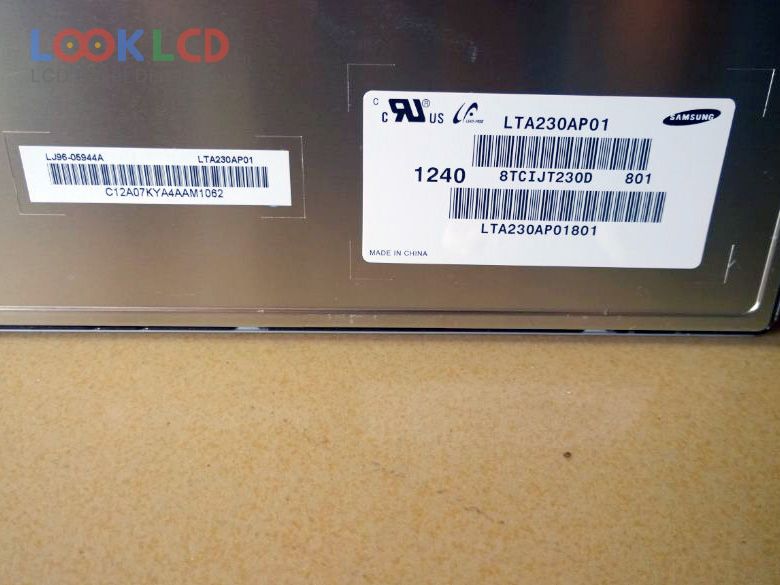

| PartNumber | LTA230AP01 |
| Marca | Samsung |
| mărimea | 23.0 |
| Aplicație | LCTV |
| Rezoluţie | 1366×768 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | SAMSUNG |
| model de panou | LTA230AP01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 23.0 inch |
| rezoluţie | 1366×768(RGB) , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 508.152×285.696 mm |
| contur | 534×311.8 mm |
| suprafaţă | Antiglare |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC), CIE193168% |
| timp de raspuns | 8 (Typ.)(G to G) |
| unghi de vedere | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 11S3PWLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 8-bit), 30 pins |
| tensiune de intrare | 12.0V (Typ.) |
| aplicarea | LCTV |
| LM230WF1-TLA3 | LG Display | 23.0 | 1920×1080 |
| LM230WF1-TLA5 | LG Display | 23.0 | 1920×1080 |
| LM230WF2-SLA1 | LG Display | 23.0 | 1920×1080 |
| LM230WF5-TLD1 | LG Display | 23.0 | 1920×1080 |
| LTA230A172F | TOSHIBA | 23.0 | 1280×768 |
| LTA230AN01 | Samsung | 23.0 | 1366×768 |
| LTA230AP01 | Samsung | 23.0 | 1366×768 |
| LTA230W2-L01 | Samsung | 23.0 | 1366×768 |
| LTM230HT05 | Samsung | 23.0 | 1920×1080 |
| NL12876AC39-01 | NLT | 23.0 | 1280×768 |
| LC260WX2-SLB2 | LG Display | 26.0 | 1366×768 |
| LC315TU3A | PANDA | 31.5 | 1366×768 |
| LC320WUD-SBM2 | LG Display | 31.5 | 1920×1080 |
| LC370WU3-SLA1 | LG Display | 37 | 1920×1080 |
| LC550WUD-SCA1 | LG Display | 55 | 1920×1080 |
| LC650EQF-FGF1 | LG Display | 65 | 3840×2160 |
| LTA260AP01 | Samsung | 26.0 | 1366×768 |
| T460HW04 V5 | AUO | 46 | 1920×1080 |
| V216BG1-LE1 | Innolux | 21.6 | 1366×768 |
| V500HJ1-ME1 | Innolux | 50 | 1920×1080 |
