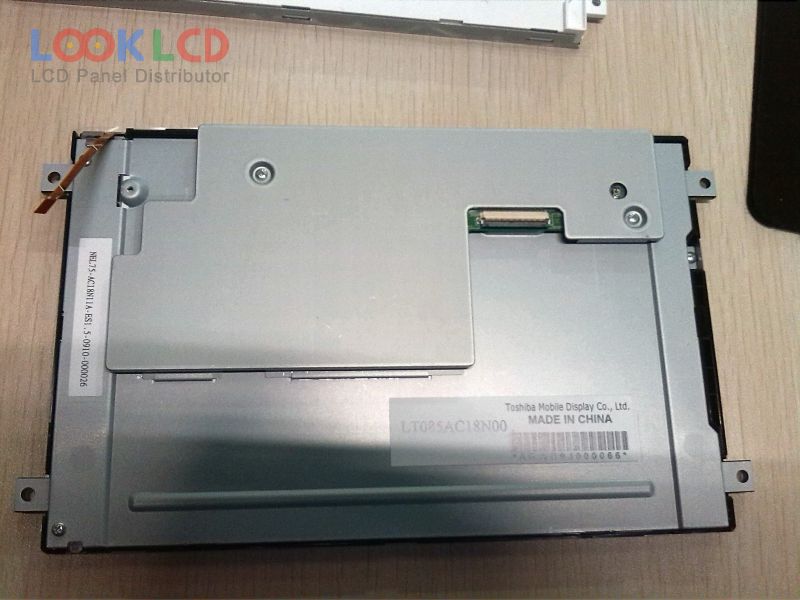

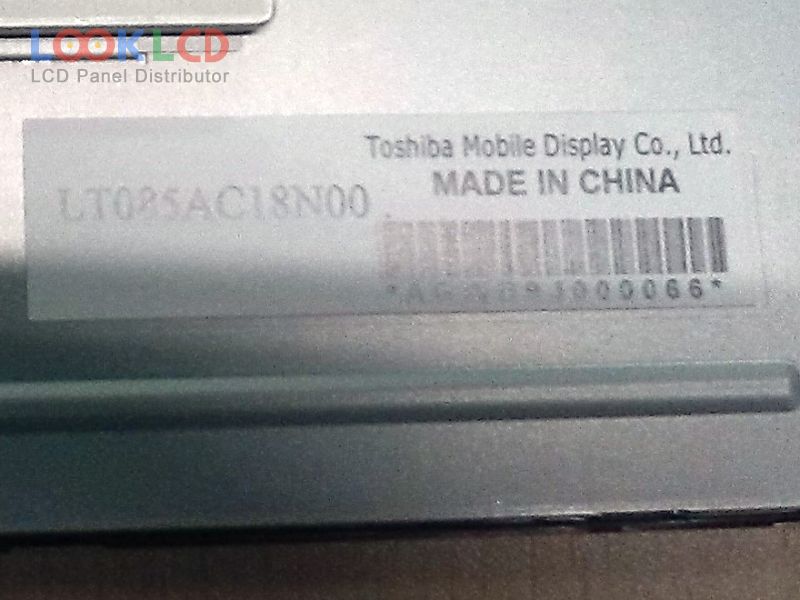

| PartNumber | LT085AC18N00 |
| Marca | TOSHIBA |
| mărimea | 8.5 |
| Aplicație | IA |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | |
| CR | 300:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | Toshiba Mobile Display |
| model de panou | LT085AC18N00 |
| tip panou | LTPS TFT-LCD , LCM |
| dimensiunea panoului | 8.5 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 184.8×110.88 mm |
| suprafaţă | |
| luminozitatea | |
| Raport de contrast | 300:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 50/50 (Max.)(Tr/Td) |
| unghi de vedere | 55/55/60/35 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | WLEDWithout Driver |
| interfață de semnal | CMOS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| rohs: | |
| aplicarea | IA |
| A085FW01 V5 | AUO | 8.5 | 480×234 |
| G085VW01 V0 | AUO | 8.5 | 800×480 |
| G085VW01 V3 | AUO | 8.5 | 800×480 |
| KMT085WV | Samsung | 8.5 | 800×480 |
| LM085YB1T01 | SHARP | 8.5 | 800×480 |
| LQ085Y3DG01 | SHARP | 8.5 | 800×480 |
| LQ085Y3DG12 | SHARP | 8.5 | 800×480 |
| LT085AC18N00 | TOSHIBA | 8.5 | 800×480 |
| LW850AT9301 | Innolux | 8.5 | 800×480 |
| AM-1024768MTMQW-00H | AMPIRE | 10.4 | 1024×768 |
| LT084AC27800 | TOSHIBA | 8.4 | 800×600 |
| LTA084C190F | TOSHIBA | 8.4 | 800×600 |
| MAA121DSK26 | Mitsubishi | 12.1 | 800×600 |
| MD640.400-54 | FINLUX | 9.1 | 640×400 |
| NL6448BC33-50 | NLT | 10.4 | 640×480 |
| NL8060BC26-11 | NLT | 10.4 | 800×600 |
| TCG121SVLQAPNN-AN20 | Kyocera | 12.1 | 800×600 |
| TM080SV-22L03 | SANYO | 8.0 | 800×600 |
| TX26D02VM1CAA | KOE | 10.4 | 640×480 |
