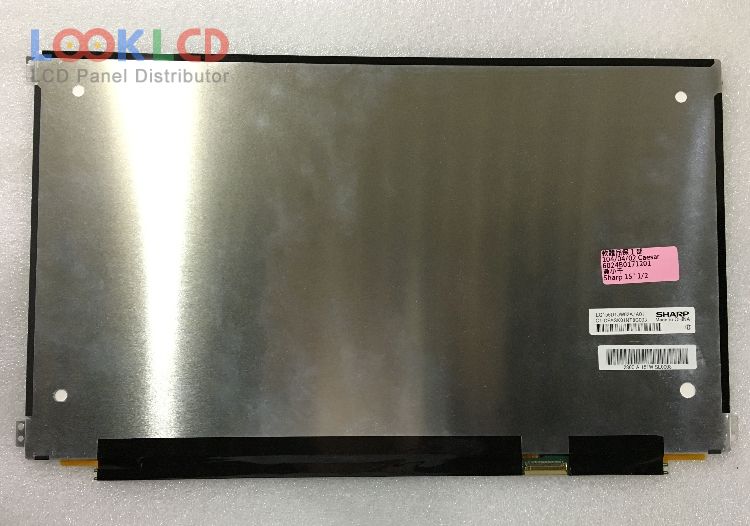

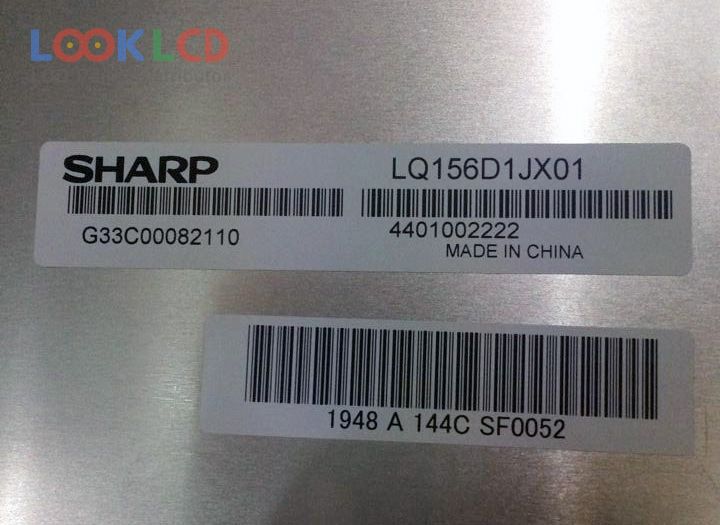

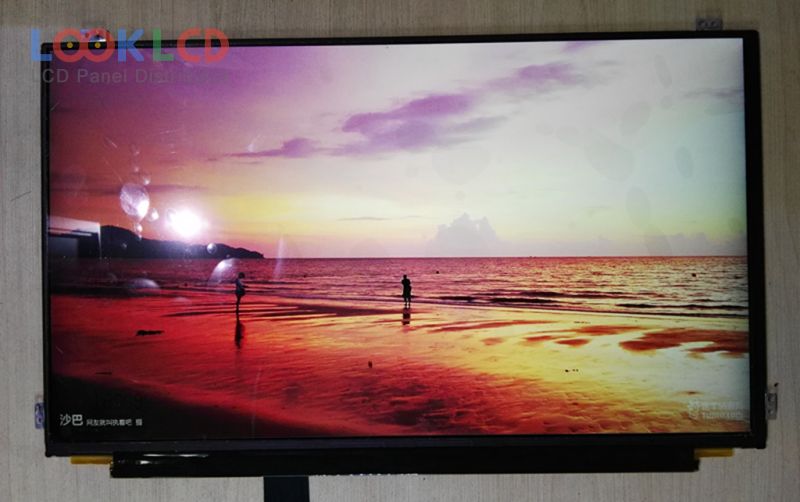

| PartNumber | LQ156D1JX01 |
| Marca | SHARP |
| mărimea | 15.6 |
| Aplicație | NBPC |
| Rezoluţie | 3840×2160 |
| Compoziţie | LCM |
| Luminozitate | 330 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | eDP |
| marca panoului | SHARP |
| model de panou | LQ156D1JX01 |
| tip panou | IGZO TFT-LCD , LCM |
| dimensiunea panoului | 15.6 inch |
| rezoluţie | 3840(RGB)×2160 , UHD |
| modul de afișare | New Mode2, Normally Black, Transmissive |
| Zonă activă | 345.6×194.4 mm |
| contur | 367.98×224.61×3.4 mm |
| stilul formei | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| suprafaţă | Glare (Haze 0%), Hard coating (3H) |
| luminozitatea | 330 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193172% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | eDP (4 Lanes), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| LP156WF4-SPB1 | LG Display | 15.6 | 1920×1080 |
| LQ156D1JW02 | SHARP | 15.6 | 3840×2160 |
| LQ156D1JW04 | SHARP | 15.6 | 3840×2160 |
| LQ156D1JX01 | SHARP | 15.6 | 3840×2160 |
| LQ156D1JX03 | SHARP | 15.6 | 3840×2160 |
| LQ156M1LG21 | SHARP | 15.6 | 1920×1080 |
| LQ156M3LW01 | SHARP | 15.6 | 1920×1080 |
| LQ156T3LW02 | SHARP | 15.6 | 1366×768 |
| LQ156Z1JW03 | SHARP | 15.6 | 3200×1800 |
| LTN156KT06-801 | Samsung | 15.6 | 1600×900 |
| B140RW02 V0 | AUO | 14.0 | 1600×900 |
| B154EW01 V8 | AUO | 15.4 | 1280×800 |
| B201SW01 V0 | AUO | 20.1 | 1680×1050 |
| LP156WH2-TPB1 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLA2 | LG Display | 15.6 | 1366×768 |
| LP171WP4-TLB3 | LG Display | 17.1 | 1440×900 |
| LT104V3-100 | Samsung | 10.4 | 640×480 |
| LTN121AT02-001 | Samsung | 12.1 | 1280×800 |
| M116NWR1 R1 | IVO | 11.6 | 1366×768 |
| N184H6-L02 | Innolux | 18.4 | 1920×1080 |
