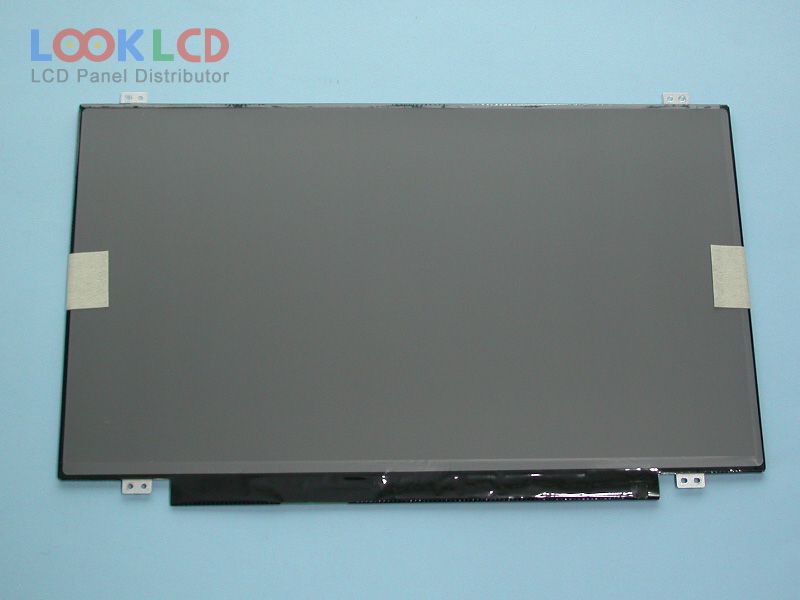

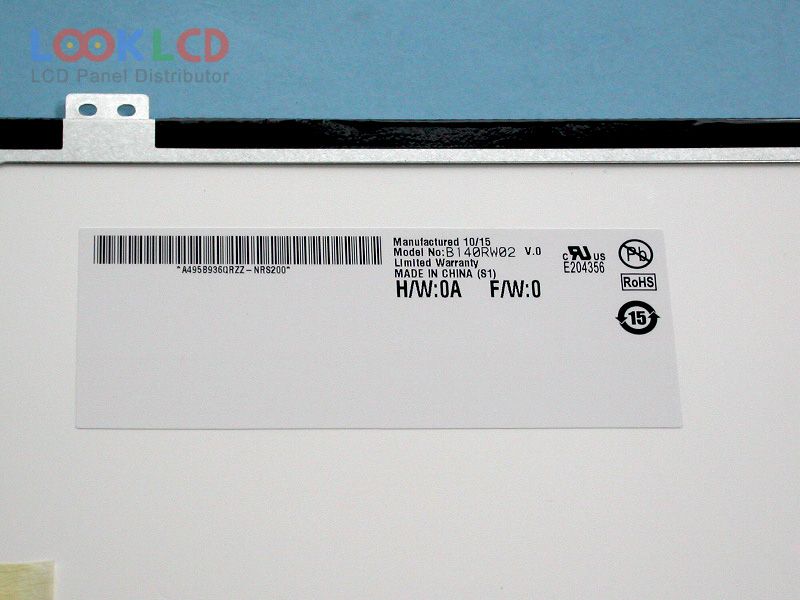

| PartNumber | B140RW02 V0 |
| Marca | AUO |
| mărimea | 14.0 |
| Aplicație | NBPC |
| Rezoluţie | 1600×900 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 400:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | AUO |
| model de panou | B140RW02 V0 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 14.0 inch |
| rezoluţie | 1600(RGB)×900 , HD+ |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 309.6×174.15 mm |
| contur | 320.4×205.1×3.6 mm |
| stilul formei | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| suprafaţă | Glare (Haze 0%), Hard coating (3H) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193145% |
| timp de raspuns | 2/6 (Typ.)(Tr/Td) |
| unghi de vedere | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (2 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| B140RTN01.0 | AUO | 14.0 | 1600×900 |
| B140RTN02.1 | AUO | 14.0 | 1600×900 |
| B140RTN02.3 | AUO | 14.0 | 1600×900 |
| B140RTN03.0 | AUO | 14.0 | 1600×900 |
| B140RW01 V0 | AUO | 14.0 | 1600×900 |
| B140RW01 V2 | AUO | 14.0 | 1600×900 |
| B140RW02 V0 | AUO | 14.0 | 1600×900 |
| B140RW02 V1 | AUO | 14.0 | 1600×900 |
| B140RW02 V2 | AUO | 14.0 | 1600×900 |
| B140RW03 V1 | AUO | 14.0 | 1600×900 |
| LP133WX3-TLA6 | LG Display | 13.3 | 1280×800 |
| LP141WP2-TLA1 | LG Display | 14.1 | 1440×900 |
| LP156WF1-TLE1 | LG Display | 15.6 | 1920×1080 |
| LP156WF6-SPB1 | LG Display | 15.6 | 1920×1080 |
| LTD133EWDD | TOSHIBA | 13.3 | 1280×800 |
| LTD133EWZX | TOSHIBA | 13.3 | 1280×800 |
| LTN140AT20-701 | Samsung | 14.0 | 1366×768 |
| LTN152W5-L03-0 | Samsung | 15.2 | 1280×854 |
| LTN173KT01-H01 | Samsung | 17.3 | 1600×900 |
| N125HCE-GN1 | Innolux | 12.5 | 1920×1080 |
