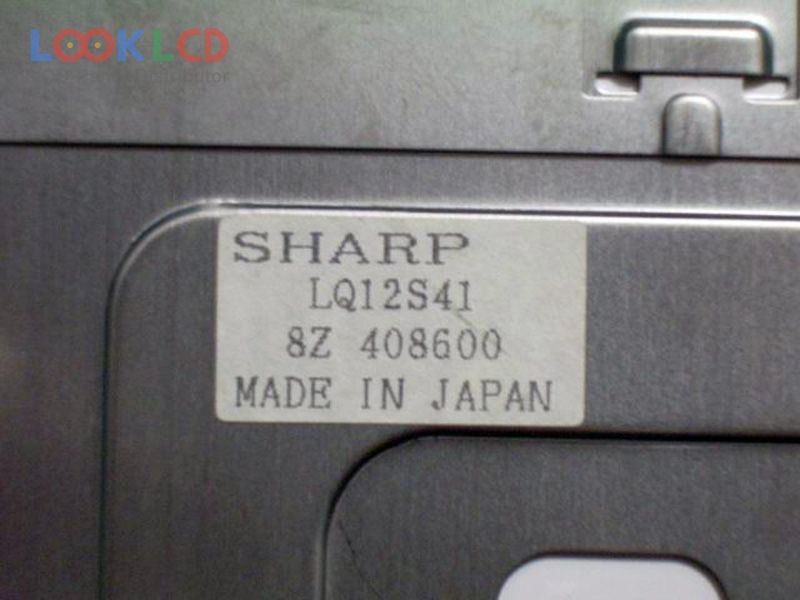

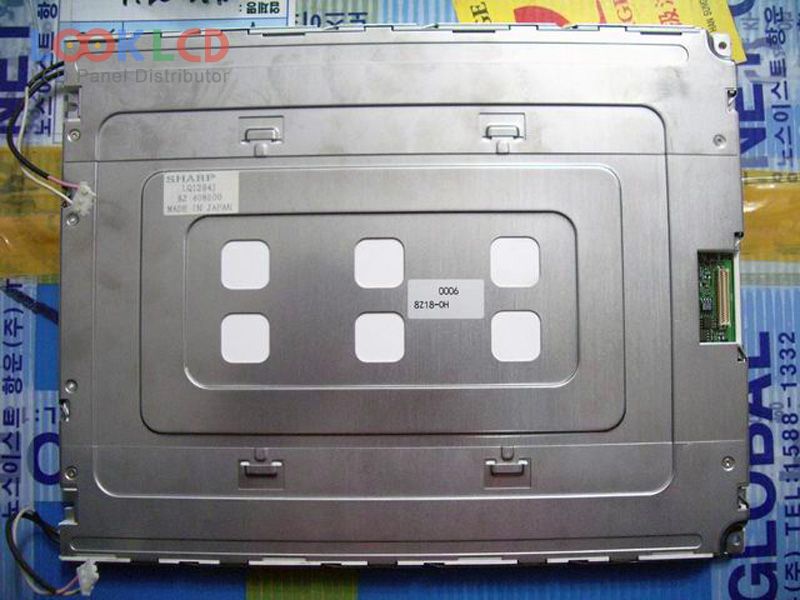

| PartNumber | LQ12S41 |
| Marca | SHARP |
| mărimea | 12.1 |
| Aplicație | IA |
| Rezoluţie | 800×600 |
| Compoziţie | LCM |
| Luminozitate | 270 |
| CR | 150:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | TTL |
| marca panoului | SHARP |
| model de panou | LQ12S41 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 12.1 inch |
| rezoluţie | 800(RGB)×600 , SVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 246×184.5 mm |
| contur | 290×225×13.7 mm |
| suprafaţă | Antiglare (Haze 28%), Hard coating (3H) |
| luminozitatea | 270 cd/m² (Typ.) |
| Raport de contrast | 150:1 (Min.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 20/40 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/55/55 (Min.)(CR≥5)(L/R/U/D) |
| tip lampa | 2 pcsCCFLWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 41 pins |
| tensiune de intrare | 3.3V (Typ.)(VCC) |
| aplicarea | IA |
