| PartNumber | LP171WX2-A4K7 |
| Marca | LG Display |
| mărimea | 17.1 |
| Aplicație | NBPC |
| Rezoluţie | 1440×900 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 350:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | LG.Philips LCD |
| model de panou | LP171WX2-A4K7 3 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 17.1 inch |
| rezoluţie | 1440(RGB)×900 , WXGA+ |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 367.2×229.5 mm |
| contur | 382.2×244.5×6.5 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Glare (Haze 0%), Hard coating (2H), Antireflection |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 350:1 (Min.) |
| culorile afișajului | 262K (6-bit), CIE193145% |
| timp de raspuns | 6/19 (Typ.)(Tr/Td) |
| unghi de vedere | 65/65/50/50 (Min.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |

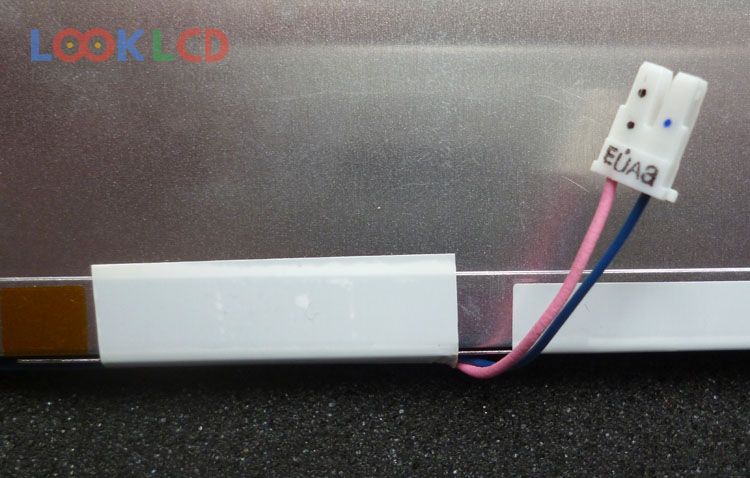

| tip lampa | 1 pcsCCFLWithout Driver |

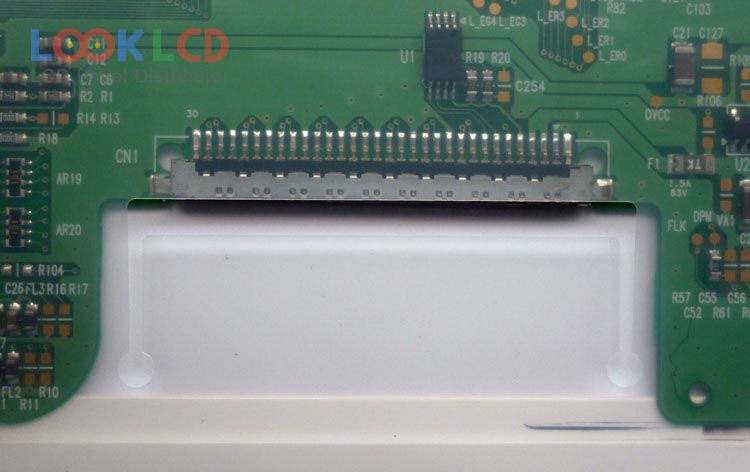

| interfață de semnal | LVDS (2 ch, 6-bit), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| LP171WP4-TLQ1 | LG Display | 17.1 | 1440×900 |
| LP171WP6-TL04 | LG Display | 17.1 | 1440×900 |
| LP171WP9-TLB3 | LG Display | 17.1 | 1440×900 |
| LP171WU1-A4K2 | LG Display | 17.1 | 1920×1200 |
| LP171WU1-TLA7 | LG Display | 17.1 | 1920×1200 |
| LP171WU5-TLA1 | LG Display | 17.1 | 1920×1200 |
| LP171WU5-TLB1 | LG Display | 17.1 | 1920×1200 |
| LP171WX2-A4K7 | LG Display | 17.1 | 1440×900 |
| LP171WX2-TLA2 | LG Display | 17.1 | 1440×900 |
| LP171WX2-TLB1 | LG Display | 17.1 | 1440×900 |
| B116XTT01.1 | AUO | 11.6 | 1366×768 |
| B154EW03 V1 | AUO | 15.4 | 1280×800 |
| B173HTN01.1 | AUO | 17.3 | 1920×1080 |
| LP150E07-A3K1 | LG Display | 15.0 | 1400×1050 |
| LP154W02-TL06 | LG Display | 15.4 | 1680×1050 |
| LP156WD1-TLB1 | LG Display | 15.6 | 1600×900 |
| LQ106K1LA01B | SHARP | 10.6 | 1280×768 |
| LTN133YL01-F01 | Samsung | 13.3 | 3200×1800 |
| N121IB-L05 Rev.C1 | Innolux | 12.1 | 1280×800 |
| N156BGE-E21 | Innolux | 15.6 | 1366×768 |
