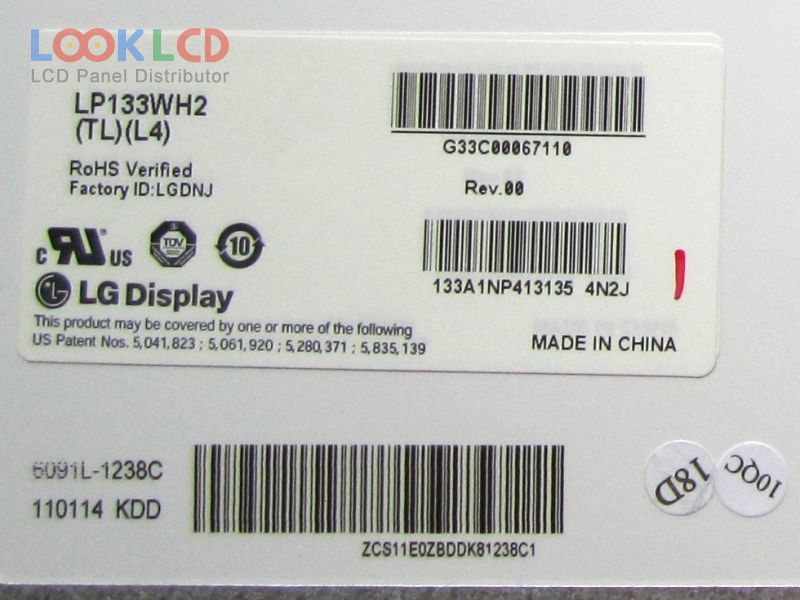

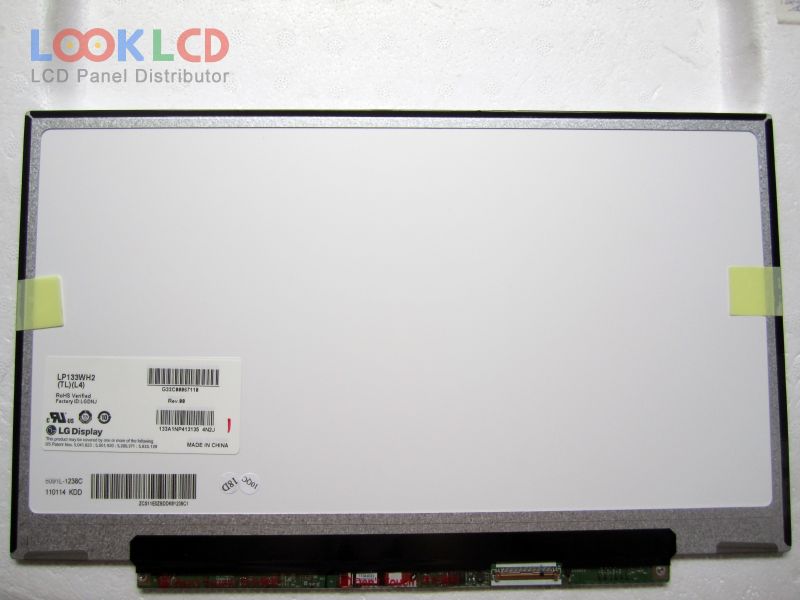

| PartNumber | LP133WH2-TLL4 |
| Marca | LG Display |
| mărimea | 13.3 |
| Aplicație | NBPC |
| Rezoluţie | 1366×768 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | LG Display |
| model de panou | LP133WH2-TLL4 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 13.3 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 293.42×164.97 mm |
| contur | 306.3×188.7×3.6 mm |
| stilul formei | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| suprafaţă | Glare (Haze 0%), Hard coating (3H) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 5.5/10.5 (Typ.)(Tr/Td) |
| unghi de vedere | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4 stringsWLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| LP133WH1-TLA3 | LG Display | 13.3 | 1366×768 |
| LP133WH1-TLB1 | LG Display | 13.3 | 1366×768 |
| LP133WH2-TLB2 | LG Display | 13.3 | 1366×768 |
| LP133WH2-TLE1 | LG Display | 13.3 | 1366×768 |
| LP133WH2-TLL3 | LG Display | 13.3 | 1366×768 |
| LP133WH2-TLL4 | LG Display | 13.3 | 1366×768 |
| LP133WH2-TLM2 | LG Display | 13.3 | 1366×768 |
| LP133WP1-TJA7 | LG Display | 13.3 | 1440×900 |
| LP133WQ1-SJEV | LG Display | 13.3 | 2560×1600 |
| LP133WX2-TLAA | LG Display | 13.3 | 1280×800 |
| B116XTB01.0 | AUO | 11.6 | 1366×768 |
| B121EW03 V8 | AUO | 12.1 | 1280×800 |
| B141PW04 V0 HW2A | AUO | 14.1 | 1440×900 |
| HSD140PHW2-A00 | HannStar | 14.0 | 1366×768 |
| LP141WX3-TLR1 | LG Display | 14.1 | 1280×800 |
| LP154WX7-TLA3 | LG Display | 15.4 | 1280×800 |
| LP156WF4-SLB1 | LG Display | 15.6 | 1920×1080 |
| LTM10C327F | TOSHIBA | 10.4 | 1024×768 |
| LTN156HT01-101 | Samsung | 15.6 | 1920×1080 |
| TX41D97VC1HAA | KOE | 16.1 | 1400×1050 |
