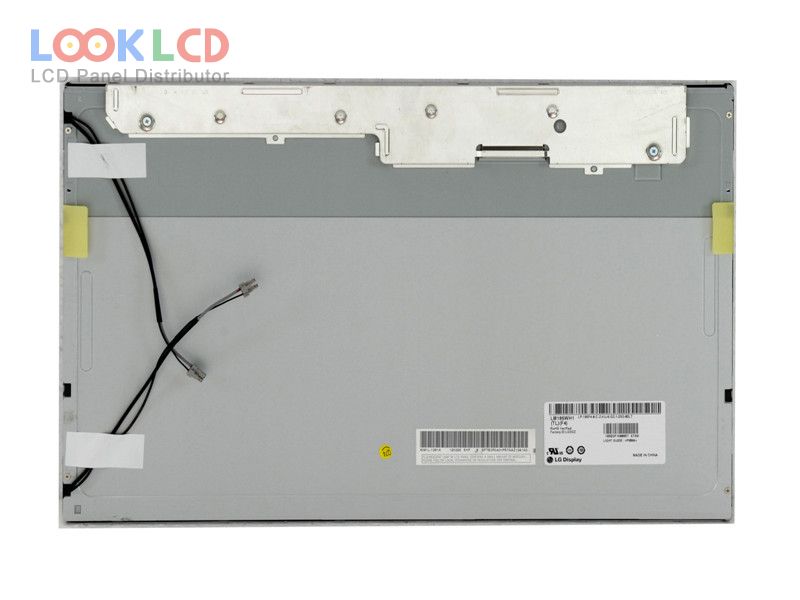

| PartNumber | LM185WH1-TLF4 |
| Marca | LG Display |
| mărimea | 18.5 |
| Aplicație | DMPC |
| Rezoluţie | 1366×768 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | LG Display |
| model de panou | LM185WH1-TLF4 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 18.5 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 409.8×230.4 mm |
| suprafaţă | |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC), CIE193172% |
| timp de raspuns | 5 (Typ.)(Tr+Td) |
| unghi de vedere | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | CCFL |
| interfață de semnal | LVDS (2 ch, 8-bit) |
| aplicarea | DMPC |
| LM185WH1-TLA1 | LG Display | 18.5 | 1366×768 |
| LM185WH1-TLD1 | LG Display | 18.5 | 1366×768 |
| LM185WH1-TLD3 | LG Display | 18.5 | 1366×768 |
| LM185WH1-TLF1 | LG Display | 18.5 | 1366×768 |
| LM185WH1-TLF4 | LG Display | 18.5 | 1366×768 |
| LM185WH1-TLH1 | LG Display | 18.5 | 1366×768 |
| LM185WH2-T2BB | LG Display | 18.5 | 1366×768 |
| LM185WH2-TLA1 | LG Display | 18.5 | 1366×768 |
| LM185WH2-TLD1 | LG Display | 18.5 | 1366×768 |
| LM185WH2-TLE2 | LG Display | 18.5 | 1366×768 |
| IAQX10M | IDTech | 15.0 | 2048×1536 |
| LM170E03-TLJ1 | LG Display | 17.0 | 1280×1024 |
| LM215DT1A | PANDA | 21.5 | 1920×1080 |
| LM220WE3-TLA1 | LG Display | 22.0 | 1680×1050 |
| LM270QQ1-SDA2 | LG Display | 27.0 | 5120×2880 |
| LM290WW1-SSA1 | LG Display | 29.0 | 2560×1080 |
| LTM15C428S | TOSHIBA | 15.0 | 1024×768 |
| LTM181E3-P01 | Samsung | 18.1 | 1280×1024 |
| LTM200KT08-V | Samsung | 20.0 | 1600×900 |
| M170EG01 VA | AUO | 17.0 | 1280×1024 |
