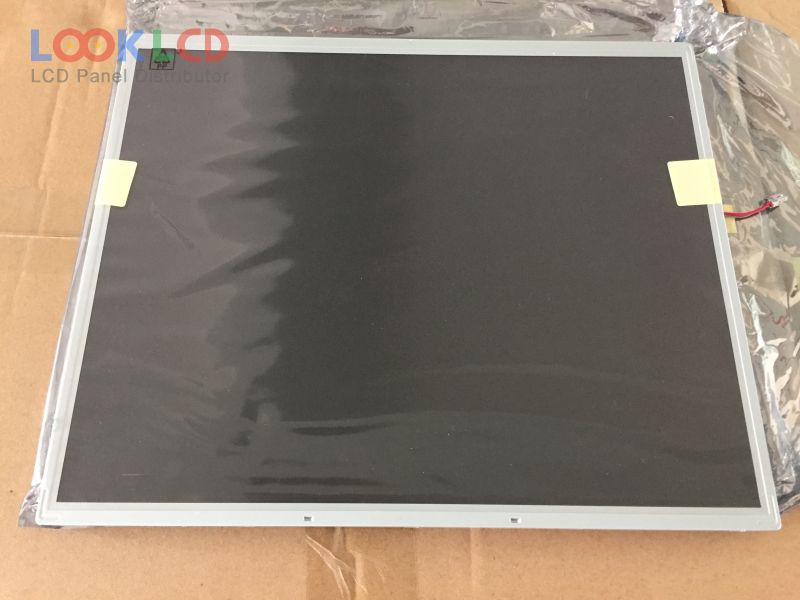

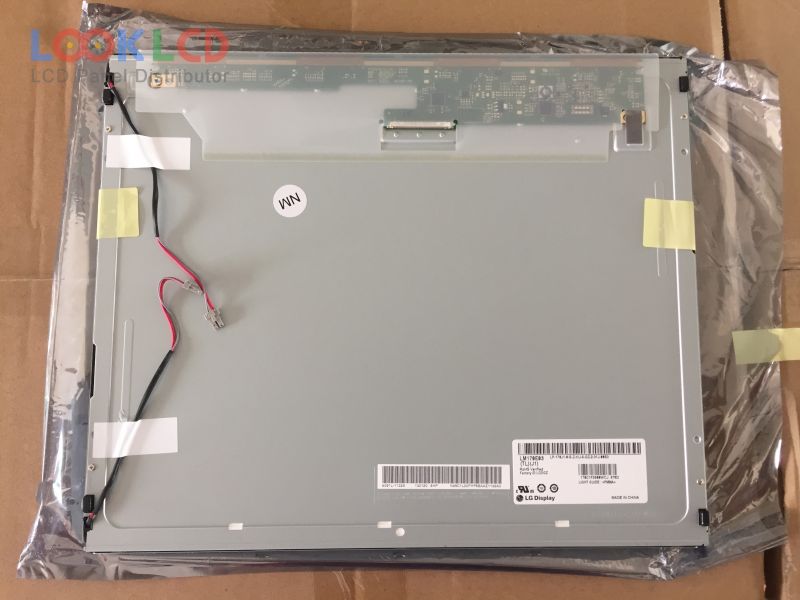

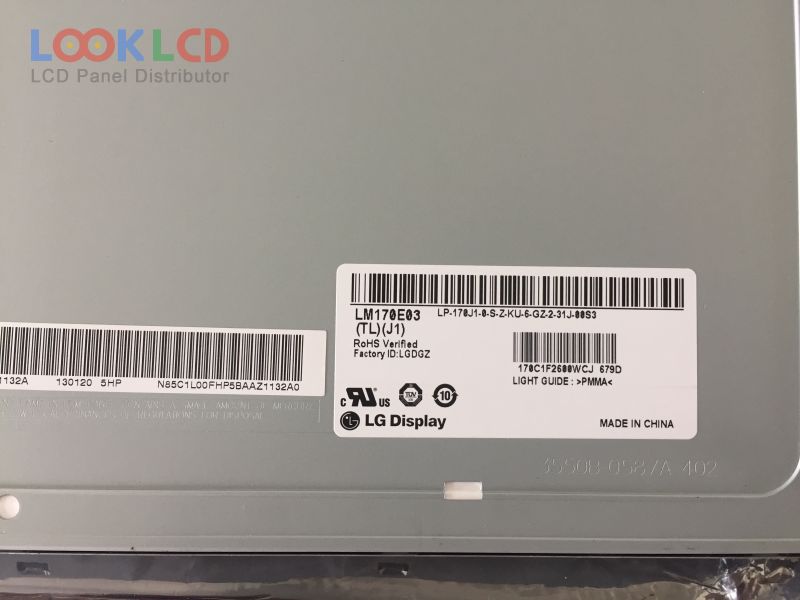

| PartNumber | LM170E03-TLJ1 |
| Marca | LG Display |
| mărimea | 17.0 |
| Aplicație | DMPC |
| Rezoluţie | 1280×1024 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | LG Display |
| model de panou | LM170E03-TLJ1 1 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 17.0 inch |
| rezoluţie | 1280(RGB)×1024 , SXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 337.92×270.336 mm |
| contur | 358.5×296.5×14 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC), CIE193172% |
| timp de raspuns | 1.2/3.8 (Typ.)(Tr/Td) |
| unghi de vedere | 85/85/75/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 2 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (2 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
| LM170E01-A4 | LG Display | 17.0 | 1280×1024 |
| LM170E01-A6 | LG Display | 17.0 | 1280×1024 |
| LM170E01-TLA1 | LG Display | 17.0 | 1280×1024 |
| LM170E01-TLB3 | LG Display | 17.0 | 1280×1024 |
| LM170E01-TLBF | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLJ1 | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLJ2 | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLJ5 | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLJ6 | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLL2 | LG Display | 17.0 | 1280×1024 |
| CLAA150XM05 | CPT | 15.0 | 1024×768 |
| HM200WD1-100 | BOE | 20.0 | 1600×900 |
| LM215WF2-SLC1 | LG Display | 21.5 | 1920×1080 |
| LM260WU2-SLA2 | LG Display | 25.5 | 1920×1200 |
| LTM215HT04 | Samsung | 21.5 | 1920×1080 |
| M170EN01 V9 | AUO | 17.0 | 1280×1024 |
| M170EU01 V0 | AUO | 17.0 | 1280×1024 |
| M240HW02 V6 | AUO | 24.0 | 1920×1080 |
| M270HW01 V0 | AUO | 27.0 | 1920×1080 |
| TD170WGCB2 | TPO | 17.0 | 1280×1024 |
