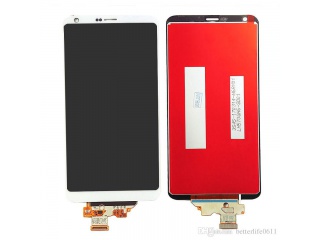

| PartNumber | LH570QH6-SD01 |
| Marca | LG Display |
| mărimea | 5.7 |
| Aplicație | Mobile Phone |
| Rezoluţie | 1440×2880 |
| Compoziţie | Assembly , a-Si TF |
| Luminozitate | |
| CR | 1500:1 |
| Culori | 16.7M |
| Iluminare de fundal | 4S3P |
| Interfață | MIPI |
| producător | LG Display |
| marimea ecranului | 5.7 inch |
| numărul de pixeli | 1440(RGB)×2880 564PPI |
| zona activa (mm) | 64.8 × 129.6 (H×V) |
| zona rama (mm) | - |
| luminanţă | 500 cd/m² (Typ.) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10) |
| vedere buna la | Symmetry |
| adâncimea culorii | 16.7M 85% NTSC |
| masa | 26.6±2.7g |
| rată de reîmprospătare | 60Hz |
| tipul semnalului | MIPI (4 data lanes) , 54 pins Connector |
| alimentare cu tensiune | 1.8/3.3/5.5/-5.5V (Typ.)(VDDI/VPNL/DDVDL/DDVDH) |
| max. evaluări | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| numele modelului | LH570QH6-SD01 |
| tipul de ecran | Assembly , a-Si TFT-LCD |
| aranjament | RGB Vertical Stripe |
| contur (mm) | 68.72 × 145.7 (H×V×D) |
| tratament | Hard coating |
| Raport de contrast | 1500 : 1 (Typ.) (TM) |
| raspuns | 25 (Typ.)(Tr+Td) ms |
| modul de lucru | - |
| lumina de fundal | 4S3P WLED , No Driver |
| folosit pentru | Mobile Phone |
| touch screen | PCAP |
