| PartNumber | LA121WH1-SL02 |
| Marca | LG Display |
| mărimea | 12.1 |
| Aplicație | Automotive Display |
| Rezoluţie | 1280×720 |
| Compoziţie | LCM , a-Si TFT-LCD |
| Luminozitate | |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | 8S3P |
| Interfață | LVDS |
| producător | LG Display |
| numele modelului | LA121WH1-SL02 |
| marimea ecranului | 12.1 inch |
| tipul de ecran | LCM , a-Si TFT-LCD |
| numărul de pixeli | 1280(RGB)×720 (WXGA) 121PPI |
| aranjament | RGB Vertical Stripe |
| zona activa (mm) | 266.88 × 150.12 (H×V) |
| contur (mm) | 287.4 × 163.45 × 9.51 (H×V×D) |
| zona rama (mm) | 269.65 × 152.55 (H×V) |
| tratament | Antiglare |
| luminanţă | 500 cd/m² (Typ.) |
| Raport de contrast | 1000 : 1 (Typ.) (TM) |
| unghi de vedere | 80/80/80/80 (Min.)(CR≥10) |
| raspuns | 17/13 (Max.)(Tr+Td) ms |
| vedere buna la | Symmetry |
| modul de lucru | IPS, Normally Black, Transmissive |
| adâncimea culorii | 16.7M 62% NTSC |
| lumina de fundal | 8S3P WLED , 10K hours , No Driver |
| masa | 417±5g |
| folosit pentru | Automotive Display |
| rată de reîmprospătare | 60Hz |
| touch screen | Without |

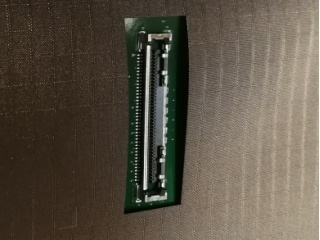

| tipul semnalului | LVDS (1 ch, 8-bit) , 40 pins Connector |
| alimentare cu tensiune | 3.3V (Typ.) |
| max. evaluări | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C |
