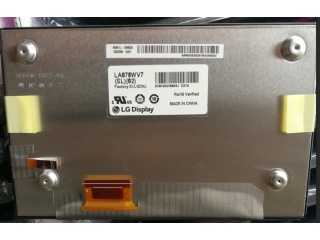

| PartNumber | LA070WV7-SL02 |
| Marca | LG Display |
| mărimea | 7.0 |
| Aplicație | Outdoor High Brightn |
| Rezoluţie | 800×480 |
| Compoziţie | LCM, a-Si TFT-LCD |
| Luminozitate | |
| CR | 1100:1 |
| Culori | 16.7M |
| Iluminare de fundal | 6S3P |
| Interfață | LVDS |
| producător | LG Display |
| numele modelului | LA070WV7-SL02 |
| marimea ecranului | 7.0 inch |
| tipul de ecran | LCM, a-Si TFT-LCD |
| numărul de pixeli | 800(RGB)×480 (WVGA) 133PPI |
| aranjament | RGB Vertical Stripe |
| zona activa (mm) | 152.4 × 91.44 (H×V) |
| contur (mm) | 166.4 × 106.2 × 10.7 (H×V×D) |
| zona rama (mm) | 158.4 × 94.2 (H×V) |
| tratament | Antiglare (Haze 25%) |
| luminanţă | 1000 cd/m² (Typ.) |
| Raport de contrast | 1100 : 1 (Typ.) (TM) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10) |
| raspuns | 16/14 (Typ.)(Tr/Td) ms |
| vedere buna la | Symmetry |
| modul de lucru | IPS, Normally Black, Transmissive |
| adâncimea culorii | 16.7M 65% NTSC |
| lumina de fundal | 6S3P WLED , 30K hours , No Driver |
| masa | 162/167g (Typ./Max.) |
| folosit pentru | Outdoor High Brightness Automotive Display |
| rată de reîmprospătare | 60Hz |
| touch screen | Without |
| tipul semnalului | LVDS (1 ch, 8-bit) , FPC 50 pins |
| alimentare cu tensiune | 3.3/13/18/-7.5V (Typ.)(DVDD/AVDD/VGH/VGL) |
| max. evaluări | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 5.0G (49.0 m/s²) |
