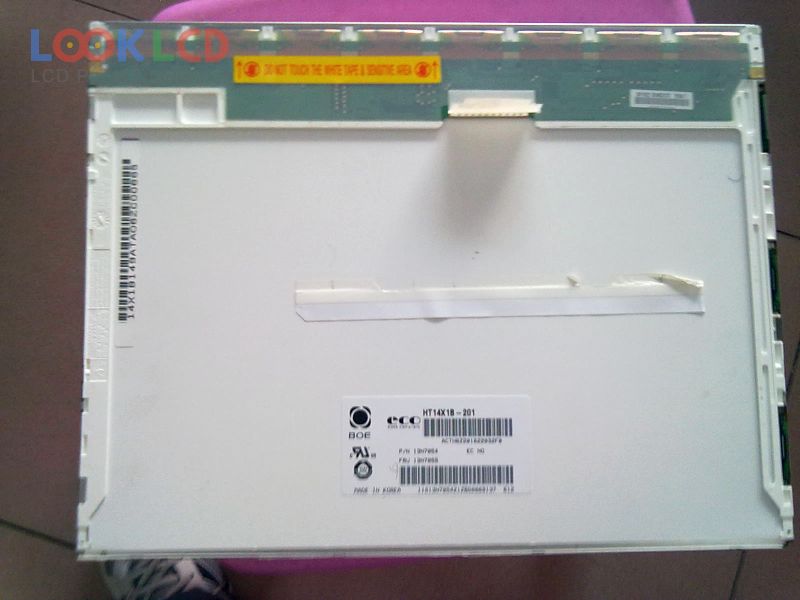

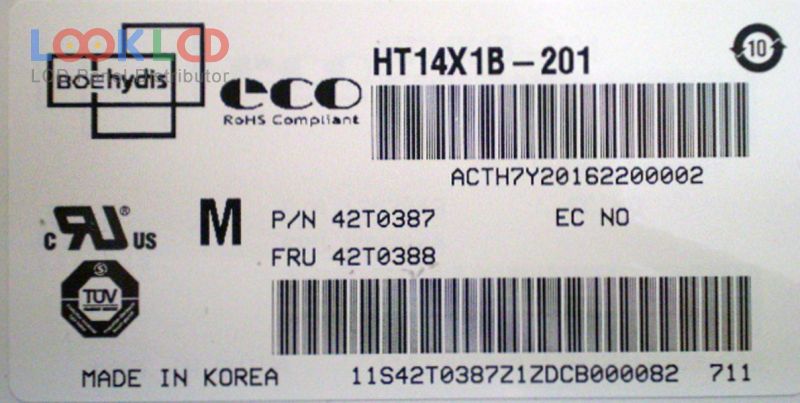

| PartNumber | HT14X1B-201 |
| Marca | HYDIS |
| mărimea | 14.1 |
| Aplicație | NBPC |
| Rezoluţie | 1024×768 |
| Compoziţie | LCM |
| Luminozitate | 150 |
| CR | 200:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | BOE HYDIS |
| model de panou | HT14X1B-201 2 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 14.1 inch |
| rezoluţie | 1024(RGB)×768 , XGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 285.696×214.272 mm |
| contur | 299×228×5.5 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | |
| luminozitatea | 150 cd/m² (Typ.) |
| Raport de contrast | 200:1 (Min.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 25/25 (Max.)(Tr/Td) |
| unghi de vedere | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (1 ch, 6-bit), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
