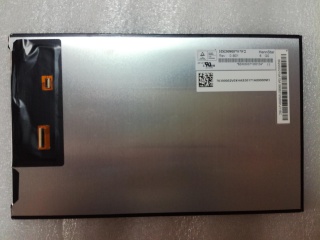

| PartNumber | HSD080PWW2-B01 |
| Marca | HannStar |
| mărimea | 8.0 |
| Aplicație | Pad & Tablet Ind |
| Rezoluţie | 800×1280 |
| Compoziţie | a-Si TFT-LCD, LCM |
| Luminozitate | |
| CR | 800:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | |
| marca | HannStar |
| model | HSD080PWW2-B01 |
| dimensiunea diagonalei | 8.0 inch |
| tip | a-Si TFT-LCD, LCM |
| format de pixeli | 800(RGB)×1280 [WXGA] 188PPI |
| configurație | RGB Vertical Stripe |
| Zonă activă | 107.64(H)×172.224(V) mm |
| contur dim. | 114.8(H)×184.7(V) ×3.71(D) mm |
| zona rama | - |
| tratament | Hard coating (3H) |
| luminanţă | 450 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) (TM) |
| direcția vizualizării | Symmetry |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10) |
| mod de operare | IPS Pro, Normally Black, Transmissive |
| culoare suport | 16.7M 60% NTSC |
| sursă de lumină | WLED [7S3P] , 15K hours , W/O Driver |
| greutate | 100g (Typ.) |
| proiectat pentru | Pad & Tablet Industrial |
| rata de cadre | 60Hz |
| panou tactil | Without |
| Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -30 ~ 65 °C |
| AV080WSM-NW0 | BOE | 8.0 | 1024×600 |
| B080EAN01.1 | AUO | 8.0 | 800×1280 |
| LA080WV4-SD03 | LG Display | 8.0 | 800×480 |
| LB080WV3-A3 | LG Display | 8.0 | 800×480 |
| LT080EE04000 | TOSHIBA | 8.0 | 1600×768 |
| LT080EE04100 | TOSHIBA | 8.0 | 1600×768 |
| N080ICE-GB0 Rev.C2 | Innolux | 8.0 | 800×1280 |
| TM080SDH01 | Tianma | 8.0 | 800×600 |
| TM080SV-04L01 | SANYO | 8.0 | 800×600 |
| ZJ080NA-08A | Innolux | 8.0 | 1024×600 |
