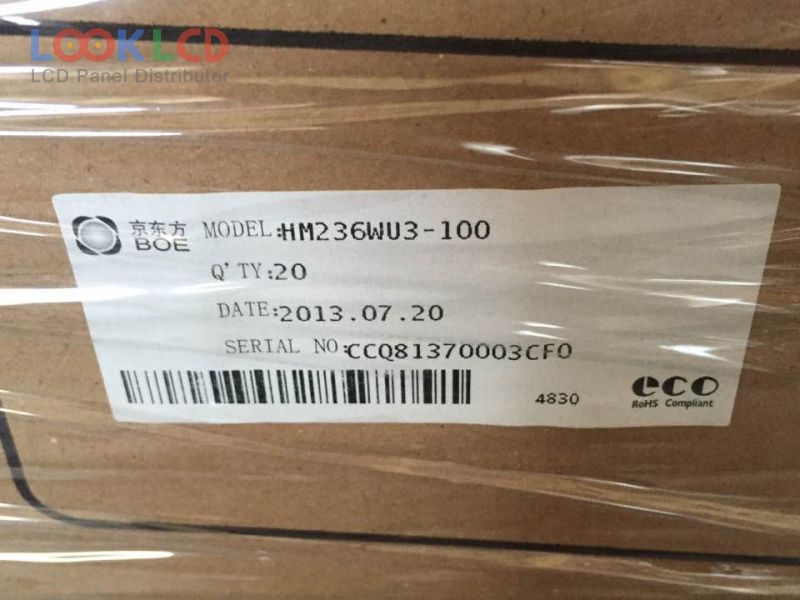

| PartNumber | HM236WU3-100 |
| Marca | BOE |
| mărimea | 23.6 |
| Aplicație | DMPC |
| Rezoluţie | 1920×1080 |
| Compoziţie | CELL |
| Luminozitate | 0 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | No B/L |
| Interfață | LVDS |
| marca panoului | BOE |
| model de panou | HM236WU3-100 |
| tip panou | a-Si TFT-LCD , CELL |
| dimensiunea panoului | 23.6 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 521.28×293.22 mm |
| contur | 535.9×307 mm |
| suprafaţă | Antiglare (Haze 25%), Hard coating (3H) |
| transmisivitatea | 5.3% (Typ.)(with Polarizer) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC) |
| timp de raspuns | 1.5/3.5 (Typ.)(Tr/Td) |
| unghi de vedere | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| interfață de semnal | LVDS (2 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
| HM236WU3-100 | BOE | 23.6 | 1920×1080 |
| HR236WU3-301 | BOE | 23.6 | 1920×1080 |
| HV236WHB-N00 | BOE | 23.6 | 1366×768 |
| M236HGJ-L11 | Innolux | 23.6 | 1920×1080 |
| M236HGK-L30 | Innolux | 23.6 | 1920×1080 |
| M236HJJ-L30 | Innolux | 23.6 | 1920×1080 |
| M236HJK-L3B | Innolux | 23.6 | 1920×1080 |
| MV236WHM-N10 | BOE | 23.6 | 1366×768 |
| V236BJ1-P01 | Innolux | 23.6 | 1366×768 |
| V236H1-L01 | Innolux | 23.6 | 1920×1080 |
| CLAA150XP03 | CPT | 15.0 | 1024×768 |
| HT190WG1-600 | BOE | 19.0 | 1440×900 |
| LM190WX2-TLK1 | LG Display | 19.0 | 1440×900 |
| LTM240CT04 | Samsung | 24.0 | 1920×1200 |
| M156B1-L01 | Innolux | 15.6 | 1366×768 |
| M170EG01 VG | AUO | 17.0 | 1280×1024 |
| M190EN03 V2 | AUO | 19.0 | 1280×1024 |
| M190PP01 V0 | AUO | 19.0 | 1440×900 |
| NL128102BC23-03 | NLT | 15.4 | 1280×1024 |
| SVA150XG10TB | SVA-NEC | 15.0 | 1024×768 |
