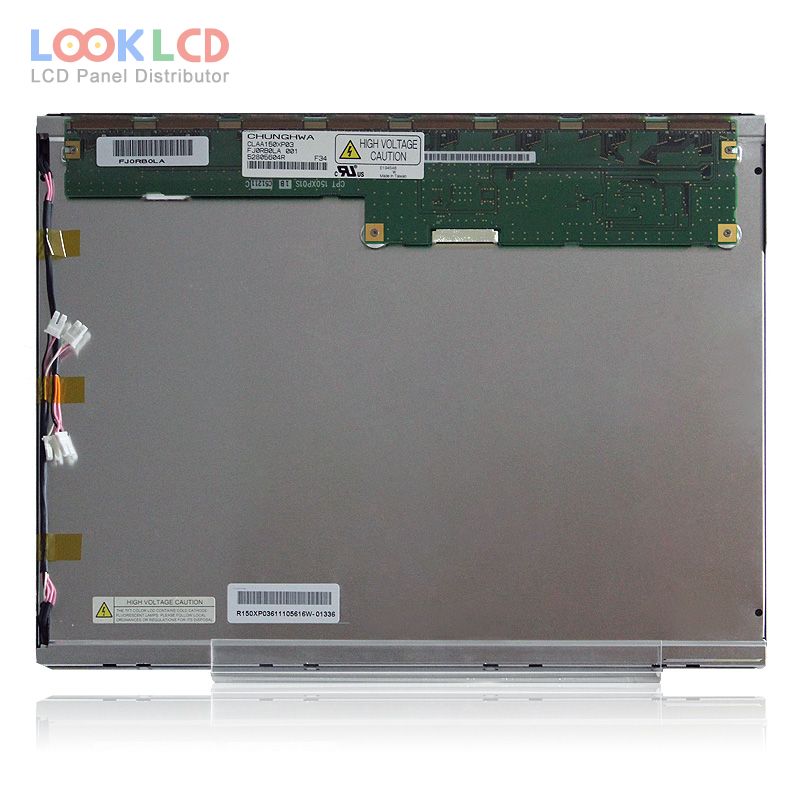

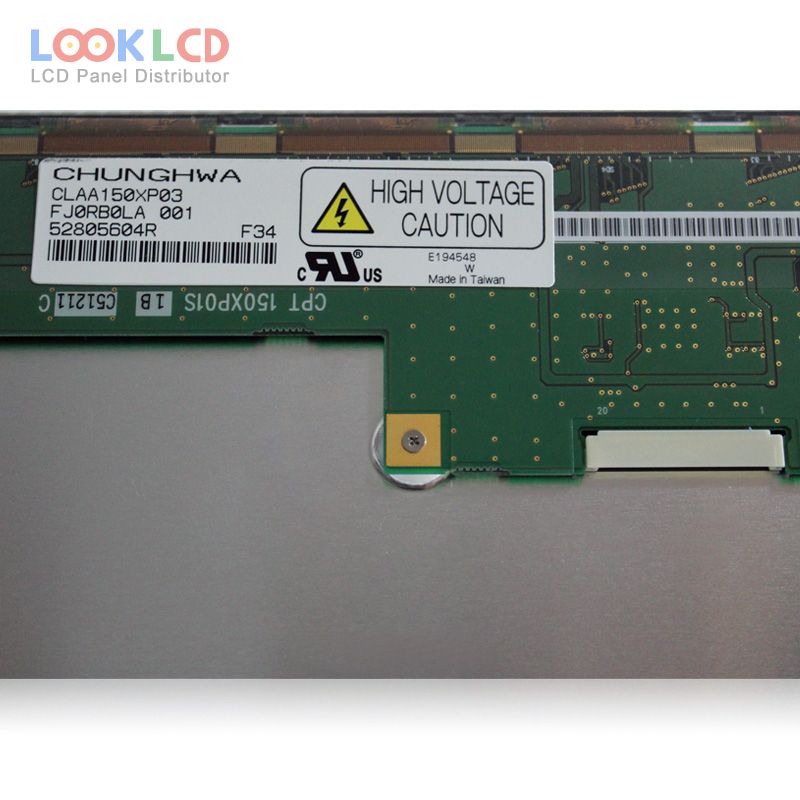

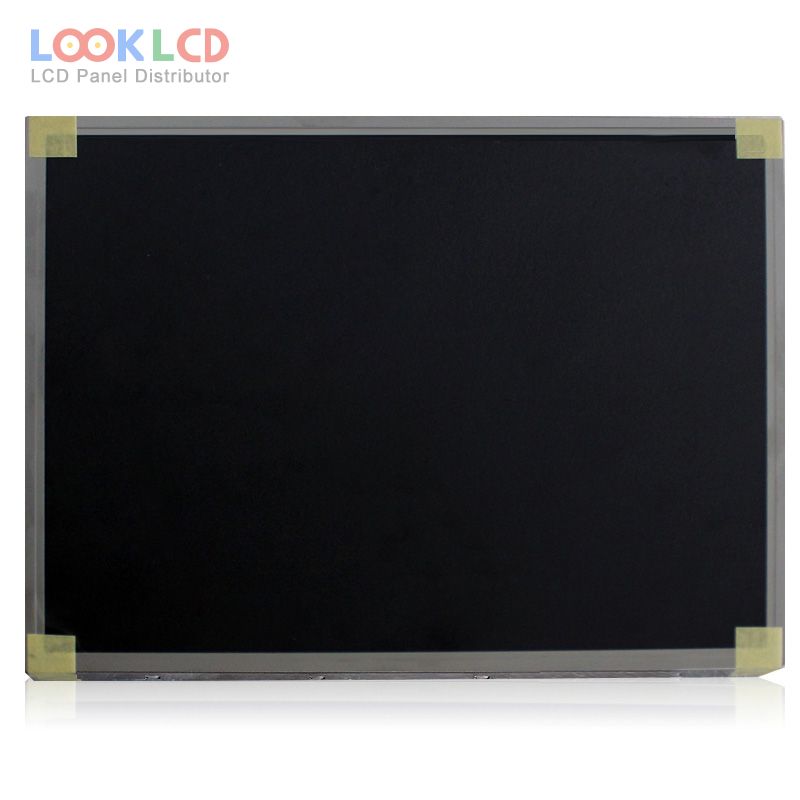

| PartNumber | CLAA150XP03 |
| Marca | CPT |
| mărimea | 15.0 |
| Aplicație | DMPC |
| Rezoluţie | 1024×768 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 500:1 |
| Culori | 16.2M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | CPT |
| model de panou | CLAA150XP03 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 15.0 inch |
| rezoluţie | 1024(RGB)×768 , XGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 304.128×228.096 mm |
| contur | 326.5×253.5×14.5 mm |
| suprafaţă | Antiglare |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 16.2M (6-bit + FRC), CIE193165% |
| timp de raspuns | 5/11 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/65/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (1 ch, 8-bit), 20 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | DMPC |
| CLAA101WJ03 XG | CPT | 10.1 | 1366×768 |
| CLAA102NA1BCN | CPT | 10.2 | 1024×600 |
| CLAA121UA01CW | CPT | 12.1 | 1600×900 |
| CLAA140WA01 | CPT | 14.0 | 1280×768 |
| CLAA140WB11A | CPT | 14.0 | 1366×768 |
| CLAA141WB11 | CPT | 14.1 | 1280×800 |
| CLAA150XP01Q V2 | CPT | 15.0 | 1024×768 |
| CLAA154WB04N | CPT | 15.4 | 1280×800 |
| CLAA154WB08A | CPT | 15.4 | 1280×800 |
| CLAA156WA07A | CPT | 15.6 | 1366×768 |
| HSD250MUW2-B00 | HannStar | 24.5 | 1920×1080 |
| LM190E08-TLJ8 | LG Display | 19.0 | 1280×1024 |
| LM270WF5-SSC1 | LG Display | 27.0 | 1920×1080 |
| M185XW01 V1 | AUO | 18.5 | 1366×768 |
| M215HJK-L3B | Innolux | 21.5 | 1920×1080 |
| M216H1-L01 | Innolux | 21.6 | 1920×1080 |
| M270DTN01.0 | AUO | 27.0 | 2560×1440 |
| M320QAN01.0 | AUO | 32.0 | 3840×2160 |
| NL160120BC27-14 | NLT | 21.3 | 1600×1200 |
| TX43D21VC0CAA | JDI | 17.0 | 1280×1024 |
