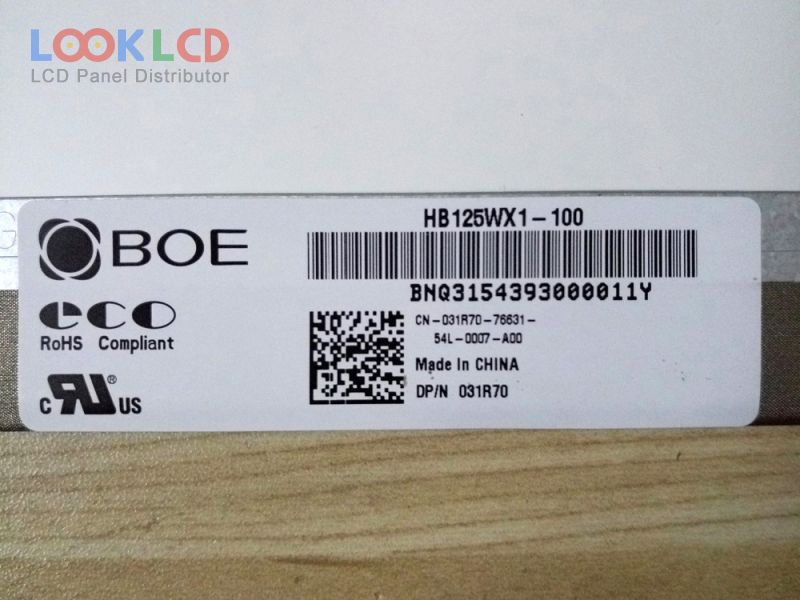

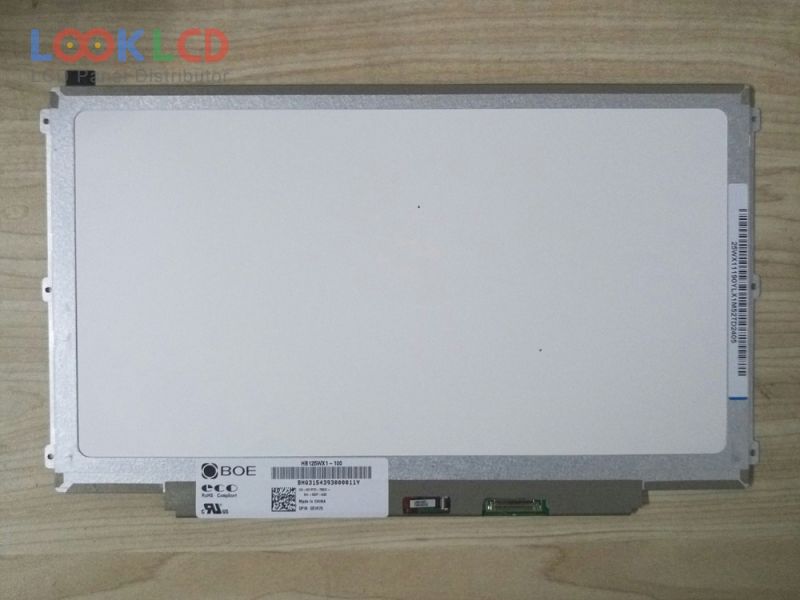

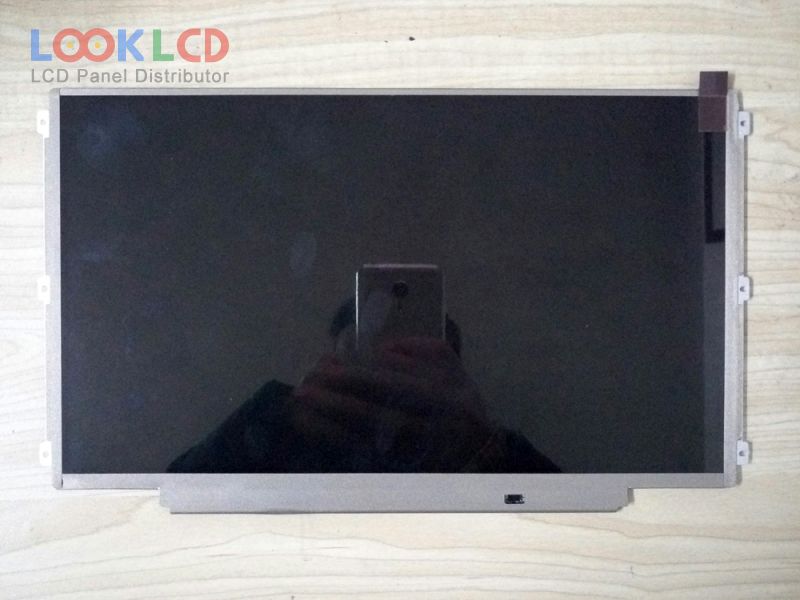

| PartNumber | HB125WX1-100 |
| Marca | BOE |
| mărimea | 12.5 |
| Aplicație | NBPC |
| Rezoluţie | 1366×768 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | eDP |
| marca panoului | BOE |
| model de panou | HB125WX1-100 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 12.5 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 276.615×155.52 mm |
| contur | 300.4×179.5×3.6 mm |
| stilul formei | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| suprafaţă | Antiglare |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193150% |
| timp de raspuns | 16 (Typ.)(Tr+Td) |
| unghi de vedere | 45/45/20/20 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 3 stringsWLEDEmbedded (LED Driver) |
| interfață de semnal | eDP (1 Lane), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| B125HAN02.0 | AUO | 12.5 | 1920×1080 |
| B125HAN02.2 | AUO | 12.5 | 1920×1080 |
| HB125WX1-100 | BOE | 12.5 | 1366×768 |
| HB125WX1-200 | BOE | 12.5 | 1366×768 |
| LP125WF1-SPA2 | LG Display | 12.5 | 1920×1080 |
| LP125WF1-SPA3 | LG Display | 12.5 | 1920×1080 |
| LP125WF2-SPB3 | LG Display | 12.5 | 1920×1080 |
| LP125WH2-SLB3 | LG Display | 12.5 | 1366×768 |
| LP125WH2-SPM2 | LG Display | 12.5 | 1366×768 |
| LQ125T1JW02 | SHARP | 12.5 | 2560×1440 |
| B133HAN03.0 | AUO | 13.3 | 1920×1080 |
| B140XW02 V1 | AUO | 14.0 | 1366×768 |
| B152EW01 V0 | AUO | 15.2 | 1280×854 |
| HN116WX1-203 | BOE | 11.6 | 1366×768 |
| HSD160PHW1-B00 | HannStar | 16.0 | 1366×768 |
| LP140WH2-TLQ1 | LG Display | 14.0 | 1366×768 |
| LP141WX5-TPP1 | LG Display | 14.1 | 1280×800 |
| LQ121X1LH73 | SHARP | 12.1 | 1024×768 |
| LQ150X1LAJ4 | SHARP | 15.0 | 1024×768 |
| N184H6-L02 | Innolux | 18.4 | 1920×1080 |
