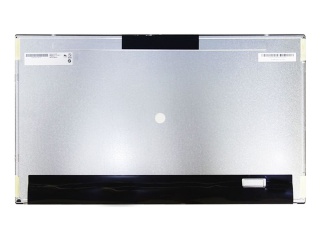

| PartNumber | G238HAN01.2 |
| Marca | AUO |
| mărimea | 23.8 |
| Aplicație | Industrial Medical I |
| Rezoluţie | 1920×1080 |
| Compoziţie | a-Si TFT-LCD, LCM |
| Luminozitate | |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | |
| marca | AUO |
| model | G238HAN01.2 |
| dimensiunea diagonalei | 23.8 inch |
| tip | a-Si TFT-LCD, LCM |
| format de pixeli | 1920(RGB)×1080 [FHD] 92PPI |
| configurație | RGB Vertical Stripe |
| Zonă activă | 527.04(H)×296.46(V) mm |
| contur dim. | 543(H)×317.4(V) ×11.65(D) mm |
| zona rama | 530.2(H)×299.6(V) mm |
| tratament | Antiglare, Hard coating (3H) |
| luminanţă | 400 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) (TM) |
| direcția vizualizării | Symmetry |
| timp de raspuns | 14 (Typ.)(G to G) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10) |
| mod de operare | AHVA, Normally Black, Transmissive |
| culoare suport | 16.7M 83% NTSC |
| sursă de lumină | WLED [18S4P] , 30K hours , W/O Driver |
| greutate | 2.30Kgs (Typ.) |
| proiectat pentru | Industrial Medical Imaging |
| rata de cadre | 60Hz |
| panou tactil | Without |
| Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| G238HAN01.0 | AUO | 23.8 | 1920×1080 |
| LM238WF1-SLE1 | LG Display | 23.8 | 1920×1080 |
| LM238WF2-SSF1 | LG Display | 23.8 | 1920×1080 |
| LM238WF4-SSA1 | LG Display | 23.8 | 1920×1080 |
| LM238WR1-SLA1 | LG Display | 23.8 | 3840×2160 |
| M238DAN01.1 Q0 | AUO | 23.8 | 2560×1440 |
| M238HAN01.0 | AUO | 23.8 | 1920×1080 |
| M238HVN01.0 | AUO | 23.8 | 1920×1080 |
| MV238FHM-N10 | BOE | 23.8 | 1920×1080 |
| MV238QUM-N20 | BOE | 23.8 | 3840×2160 |
