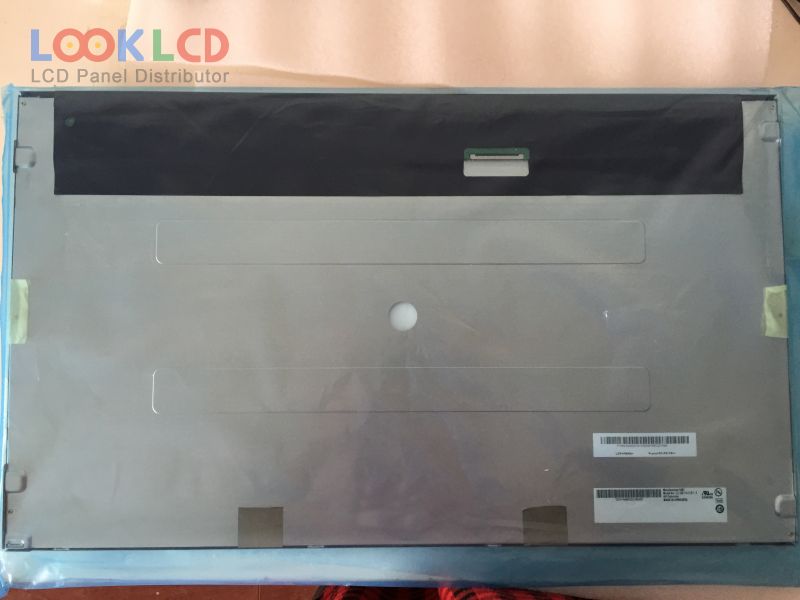

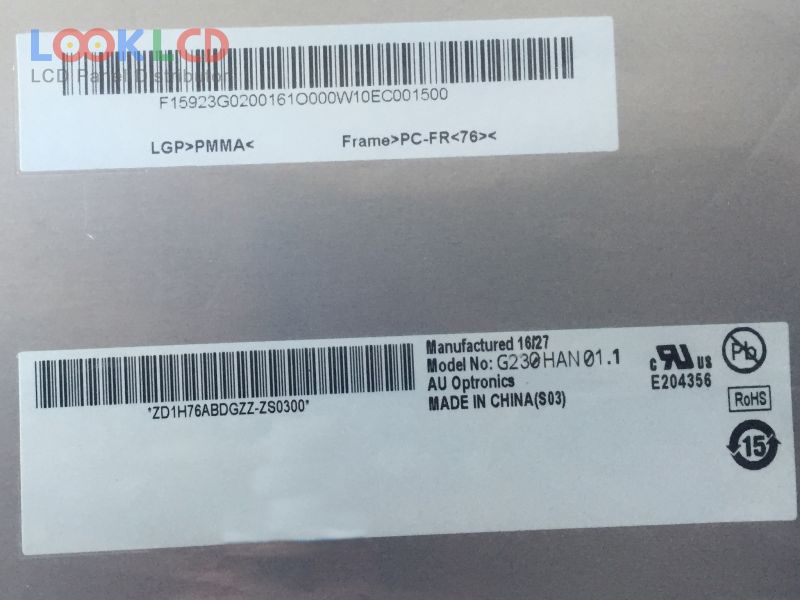

| PartNumber | G230HAN01.1 |
| Marca | AUO |
| mărimea | 23.0 |
| Aplicație | GM |
| Rezoluţie | 1920×1080 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | AUO |
| model de panou | G230HAN01.1 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 23.0 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | AHVA, Normally Black, Transmissive |
| Zonă activă | 509.184×286.416 mm |
| contur | 533.2×312×11 mm |
| suprafaţă | Antiglare |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193172% |
| timp de raspuns | 8/8 (Typ.)(Tr/Td); 14 (Typ.)(G to G) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 18S4PWLEDWithout Driver |
| interfață de semnal | LVDS (2 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | GM |
